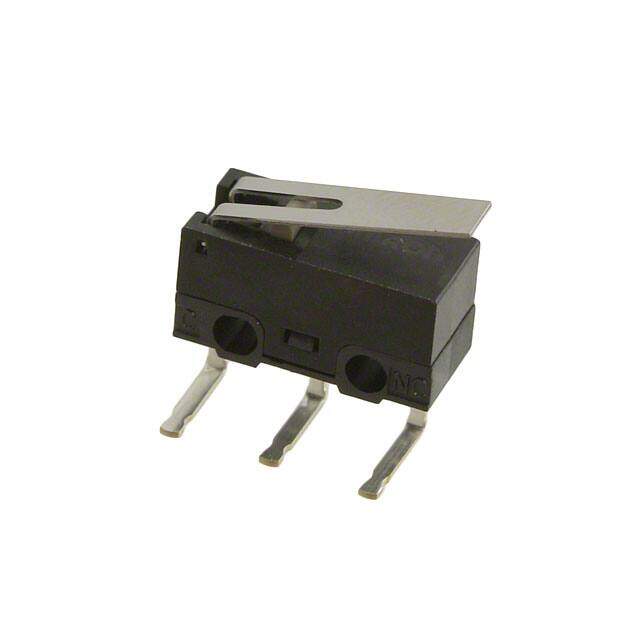

D2F-01L-A1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
Switch Snap Action N.O./N.C. SPDT Hinge Lever PC Pins 0.1A 30VDC 0.78N Screw Mount/Through Hole
PDF
/
Buying Options
Total Price: USD $3.22
Unit Price: USD $3.2208
≥1 USD $3.2208
≥10 USD $2.97176
≥100 USD $1.919183
≥500 USD $1.795367
Inventory: 1234
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Gold
Mount Screw, Through Hole
Mounting Type Through Hole, Right Angle
Technical
Operating Temperature -25°C~65°C
Packaging Bulk
Published 2004
Series D2F
Feature Actuator Mounted Left Side
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pin
ECCN Code EAR99
HTS Code 8536.50.70.00
Voltage - Rated DC 30V
Current Rating (Amps) 100mA DC
Orientation Right Angle
Ingress Protection IP40
Current Rating 100mA
Termination Style PC Pin
Body Length or Diameter 12.8mm
Body Breadth 6.5 mm
Actuator Type Lever, Straight
Circuit SPDT
Switch Function On-Mom
Contact Current(DC)-Max 0.1A
Electrical Life 100,000 Cycles
Max Voltage Rating (DC) 30V
Mechanical Life 1,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Operating Force 80gf
Contact (AC) Max Rating R Load A@VAC
Contact (DC) Max Rating R Load .1A@30VDC
Overtravel 0.022 (0.55mm)
Differential Travel 0.020 (0.5mm)
Operating Position 0.268 (6.8mm)
Release Force 5.099gf
Actuator Travel 0.55 mm
Dimensions
Body Height 5.8mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
