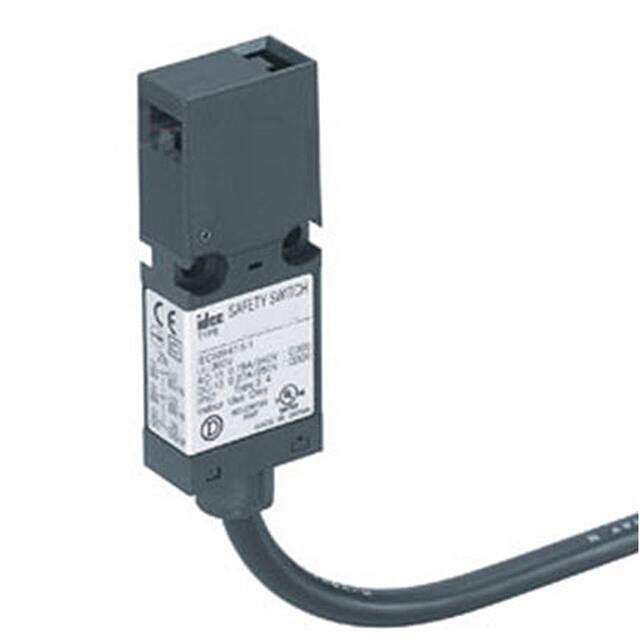

HS6B-12B01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SAFETY 3PST 2.5A 125V
PDF
/
Buying Options
Total Price: USD $75.69
Unit Price: USD $75.6888
≥1 USD $75.6888
≥10 USD $71.70504
≥100 USD $59.754024
Inventory: 188
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP67
RoHS Status ROHS3 Compliant
Dimensions
Width 30mm
Length 78mm
Technical
Pretravel 0.315 (8.0mm)
Operating Force 6118gf
Contact Current Rating 2.5A
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 250V
Throw Configuration 3PST, DPST, SPST
Electrical Life 100,000 Cycles
Max Voltage Rating (AC) 250V
Switch Function On-Off, Off-On
Circuit 3PST-2NC/1NO
Actuator Type Panel Disconnect
Voltage - Rated AC 125V
Termination Style Cable Leads
Depth 30mm
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Current Rating (Amps) 2.5A AC/DC
Voltage - Rated DC 30V
Number of Positions 3
ECCN Code EAR99
Termination Cable
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Cable Length 1m
Series HS6B
Published 2005
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Weight 120g
Housing Material Plastic
Mounting Type Chassis Mount
Mount Panel, Screw
Supply Chain
Factory Lead Time 4 Weeks
