RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description

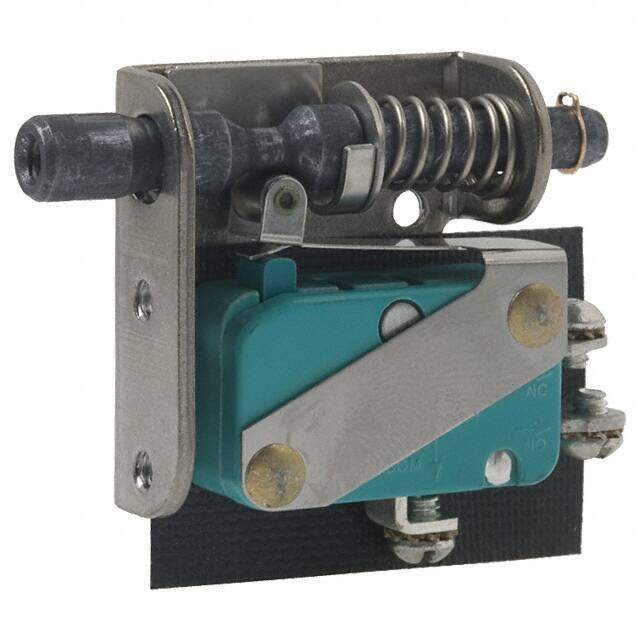

SWITCH SNAP ACTION SPDT 10A 250V
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Silver
Mount Chassis Mount, Panel, Screw
Mounting Type Chassis Mount
Housing Material Stainless Steel
Weight 3.402kg
Technical
Operating Temperature -18°C~82°C
Packaging Bulk
Published 1995
Series AC
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Number of Positions 2
HTS Code 8536.50.70.00
Current Rating (Amps) 10A AC
Current Rating 10A
Termination Style Screw Terminal
Voltage - Rated AC 250V
Approval Agency UL
Actuator Type Push-Pull Plunger
Circuit SPDT
Switch Function On-Mom
Max Voltage Rating (AC) 250V
Number of Poles 1
Max Voltage Rating (DC) 250V
Contact Current Rating 10A
Operating Force 500 mN
Overtravel 0.125 (3.2mm)
Operating Position 0.203 (5.2mm)
Dimensions
Height 38.1mm
Length 38.1mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
