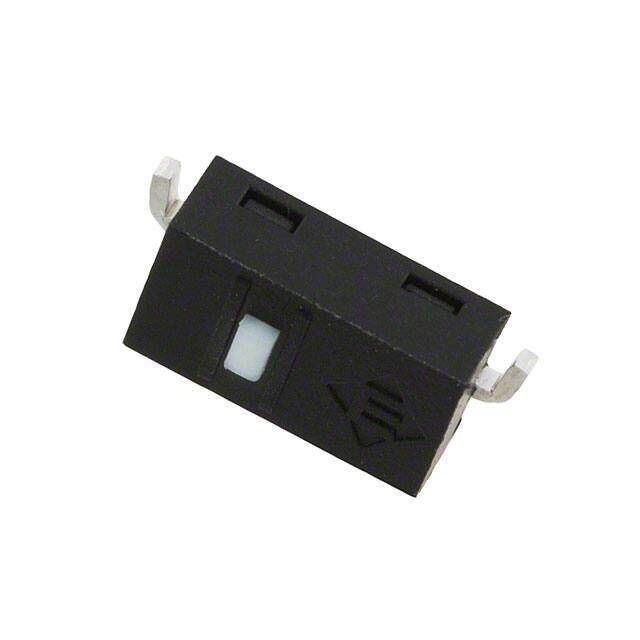

TS20100F070S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPST-NO 100MA
PDF
/
Buying Options
Total Price: USD $0.61
Unit Price: USD $0.611921
≥1 USD $0.611921
≥10 USD $0.577287
≥100 USD $0.544609
≥500 USD $0.513779
≥1000 USD $0.4847
Inventory: 1081
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Operating Position 0.130 (3.3mm)
Pretravel 0.008 (0.2mm)
Operating Force 70gf
Contact Current Rating 100mA
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 3,000,000 Cycles
Max Voltage Rating (DC) 48V
Throw Configuration SPST
Max Voltage Rating (AC) 125V
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round (Pin Plunger)
Voltage - Rated AC 125V
Termination Style SMD (SMT) Tab
Current Rating 100mA
Orientation Straight
Current Rating (Amps) 100mA AC/DC
Voltage - Rated DC 48V
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series TS2
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -25°C~85°C
Physical
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
