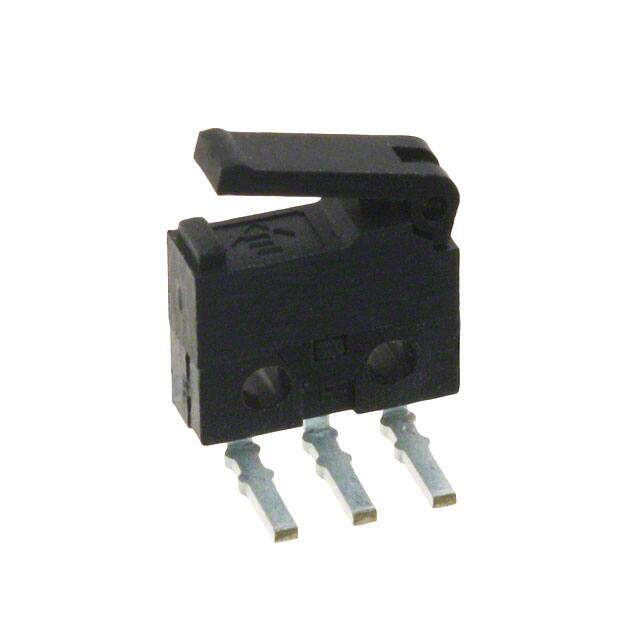

TS0101F020V4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 300MA 6V
PDF
/
Buying Options
Total Price: USD $0.79
Unit Price: USD $0.786097
≥1 USD $0.786097
≥10 USD $0.741592
≥100 USD $0.699629
≥500 USD $0.66002
≥1000 USD $0.622661
Inventory: 6946
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2009
Series TS
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Voltage - Rated DC 6V
Current Rating (Amps) 300mA DC
Orientation Right Angle
Current Rating 300mA
Termination Style PC Pin
Body Length or Diameter 8.2042mm
Body Breadth 2.6924 mm
Actuator Type Lever, Straight
Circuit SPDT
Switch Function On-Mom
Contact Resistance 0.05mOhm
Insulation Resistance 100000000Ohm
Contact Current(DC)-Max 0.3A
Dielectric Withstanding Voltage 250VAC V
Contact Function N.O.-N.C.
PCB Hole Count 5
Operating Position 0.264 (6.7mm)
Pretravel 0.071 (1.8mm)
Contact (DC) Max Rating R Load 0.3A@6VDC
Contact Timing SNAP ACTION
Operating Force 20gf
Contact Current Rating 300mA
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 100,000 Cycles
Max Voltage Rating (DC) 6V
Electrical Life 50,000 Cycles
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.216 inch
Length - Termination 0.122 inch
Body Height 7.9502mm
