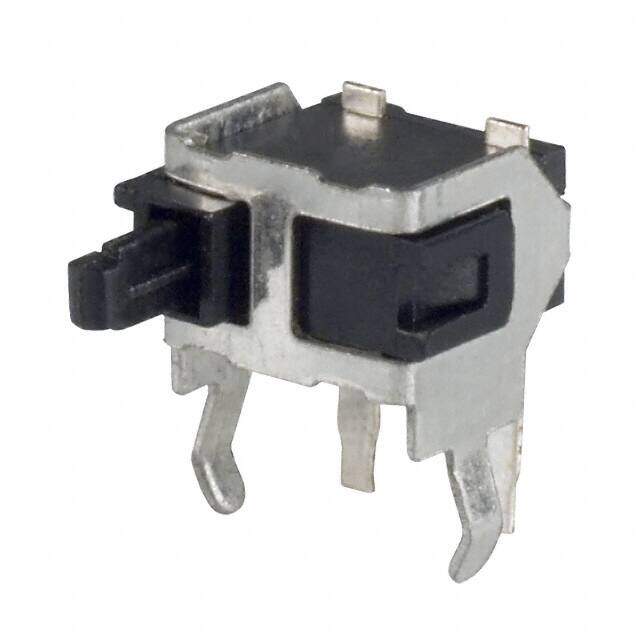

TD1105B
RoHS
/
Package /
Category Switches / Snap Action, Limit Switches
Description
SWITCH DETECT SPST-NO 100MA 30V
PDF
/
Inventory: 8746
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Silver
Mount Through Hole
Mounting Type Through Hole, Right Angle
Technical
Operating Temperature -20°C~85°C
Packaging Bulk
Published 2006
Series TD
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Voltage - Rated DC 30V
Current Rating (Amps) 100mA DC
Orientation Right Angle
Current Rating 100mA
Termination Style PC Pin
Actuator Type Overtravel Plunger
Circuit SPST-NO
Switch Function Off-Mom
Electrical Life 50,000 Cycles
Throw Configuration SPST
Operating Force 36gf
Pretravel 0.015 (0.4mm)
Operating Position 0.197 (5.0mm)
Dimensions
Height 3.7mm
Length 6.3mm
Width 5.1mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
