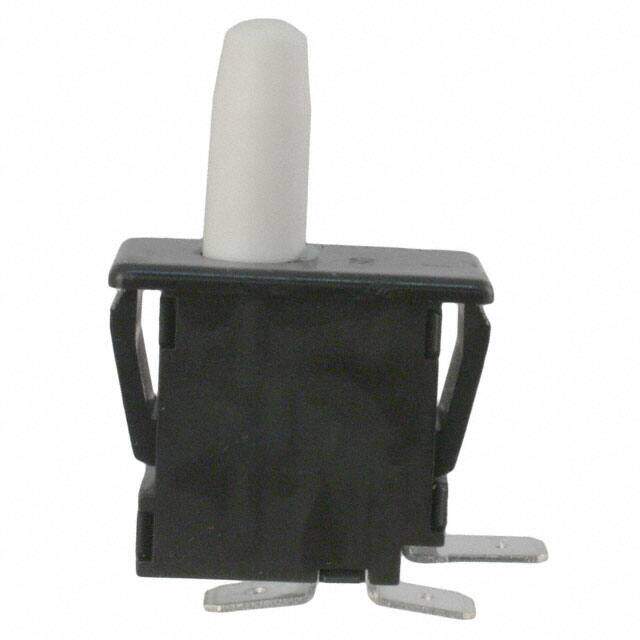

PP1-EB7-1A2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 16A 125V
PDF
/
Buying Options
Total Price: USD $2.89
Unit Price: USD $2.8864
≥1 USD $2.8864
≥10 USD $2.76232
≥100 USD $2.521728
≥500 USD $2.185568
≥1000 USD $2.114182
Inventory: 1378
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Body Height 24.5mm
Width 17mm
Technical
Operating Position 0.738 (18.7mm)
Contact (AC) Max Rating R Load 16A@125VAC
Operating Force 300gf
Contact Current Rating 16A
Switch Type PUSHBUTTON SWITCH
Electrical Life 6,000 Cycles
Switch Function On-Mom
Circuit SPDT
Actuator Type Round (Pin Plunger)
Body Breadth 13.1 mm
Body Length or Diameter 31.6mm
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.250 (6.3mm)
Current Rating 16A
Current Rating (Amps) 16A AC
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature White Actuator
Series PP1
Published 2010
Packaging Bulk
Operating Temperature 0°C~85°C
Physical
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Supply Chain
Factory Lead Time 9 Weeks
