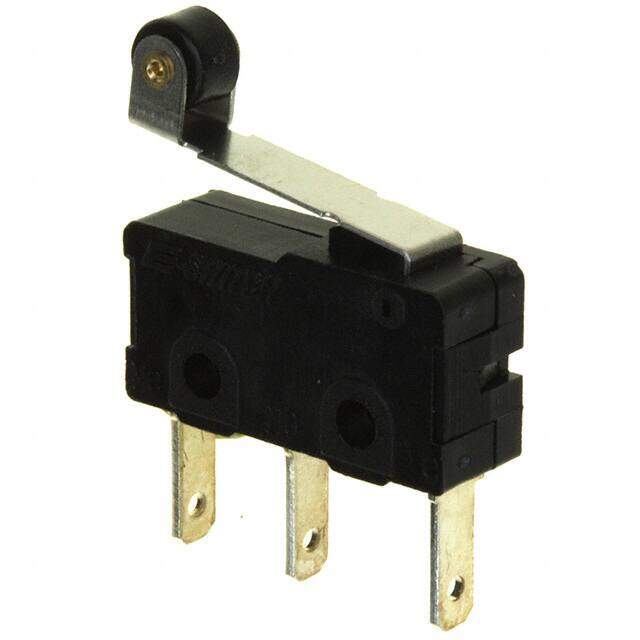

MS0850505F035C1A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $1.35
Unit Price: USD $1.3464
≥1 USD $1.3464
≥10 USD $1.2716
≥100 USD $1.220736
≥500 USD $1.169872
≥1000 USD $1.119096
≥3000 USD $0.890173
Inventory: 645
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Housing Material POLYBUTYLENE TEREPHTHALATE
Terminal Material COPPER ALLOY
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2009
Series MS
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
ECCN Code EAR99
Current Rating (Amps) 5A AC
Current Rating 5A
Termination Style Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 125V
Body Length or Diameter 19.812mm
Body Breadth 6.4008 mm
Actuator Type Lever, Roller
Circuit SPDT
Switch Function On-Mom
Contact Resistance 0.1mOhm
Insulation Resistance 100000000Ohm
Dielectric Withstanding Voltage 1000VAC V
Electrical Life 50,000 Cycles
Mechanical Life 1,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Contact Current Rating 5A
Operating Force 35gf
Contact Current(AC)-Max 5A
Contact (AC) Max Rating R Load 5A@250VAC
Contact Timing SNAP ACTION
Pretravel 0.157 (4.0mm)
Operating Position 0.587 (14.9mm)
Release Force 20gf
Dimensions
Body Height 10.5918mm
Length - Termination 0.309 inch
Compliance
RoHS Status ROHS3 Compliant
