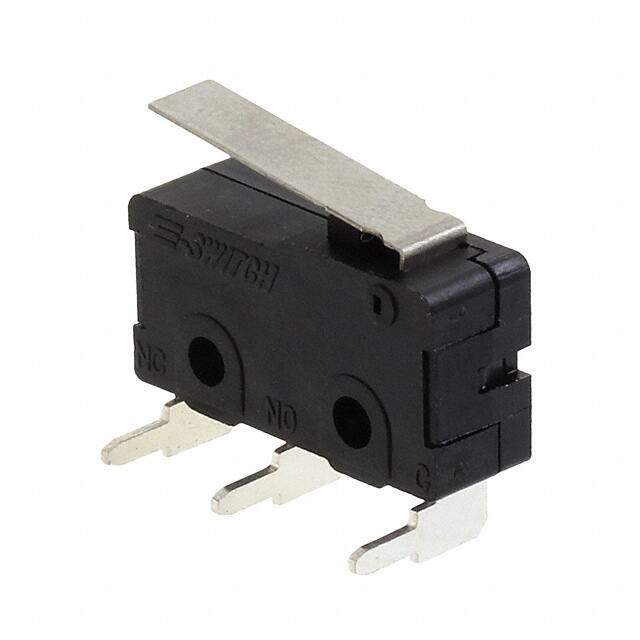

MS0850501F045V1A
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $1.29
Unit Price: USD $1.2936
≥1 USD $1.2936
≥10 USD $1.21968
≥100 USD $1.171104
≥500 USD $1.122352
≥1000 USD $1.073512
≥3000 USD $0.853917
Inventory: 110
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.571 inch
Length - Termination 0.134 inch
Body Height 10.5918mm
Technical
PCB Hole Count 5
Release Force 20gf
Operating Position 0.358 (9.1mm)
Pretravel 0.140 (3.6mm)
Contact Voltage(AC)-Max 250V
Contact Timing SNAP ACTION
Contact (AC) Max Rating R Load 5A@250VAC
Contact Current(AC)-Max 5A
Operating Force 45gf
Contact Current Rating 5A
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 1,000,000 Cycles
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 1000VAC V
Insulation Resistance 100000000Ohm
Contact Resistance 0.1mOhm
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Straight
Body Breadth 6.4008 mm
Body Length or Diameter 19.812mm
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 5A
Current Rating (Amps) 5A AC
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series MS
Published 2008
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
End Contact Plating SILVER
Terminal Material COPPER ALLOY
Package / Case 125
Mounting Type Through Hole, Right Angle
Mount Through Hole
Supply Chain
Factory Lead Time 11 Weeks
