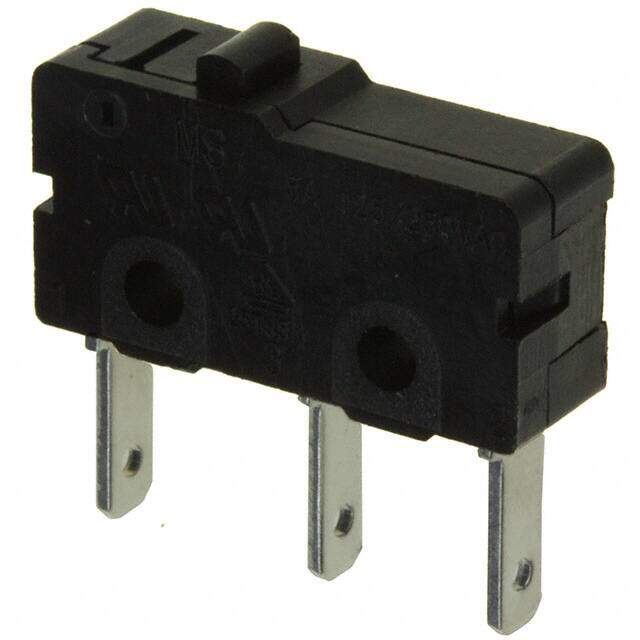

MS0850500F150C1A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 5A 125V
PDF
/
Inventory: 6770
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Housing Material POLYBUTYLENE TEREPHTHALATE
Actuator Material POLYBUTYLENE TEREPHTHALATE
Terminal Material COPPER ALLOY
End Contact Plating SILVER
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2008
Series MS
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
ECCN Code EAR99
Current Rating (Amps) 5A AC
Current Rating 5A
Termination Style Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 125V
Body Length or Diameter 19.812mm
Body Breadth 6.4008 mm
Actuator Type Round (Pin Plunger)
Circuit SPDT
Switch Function On-Mom
Contact Resistance 0.1mOhm
Insulation Resistance 100000000Ohm
Dielectric Withstanding Voltage 1000VAC V
Electrical Life 50,000 Cycles
Mechanical Life 1,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Contact Current Rating 5A
Operating Force 150gf
Contact Current(AC)-Max 5A
Contact (AC) Max Rating R Load 5A@250VAC
Contact Timing SNAP ACTION
Pretravel 0.043 (1.1mm)
Operating Position 0.335 (8.5mm)
Release Force 40gf
Dimensions
Body Height 10.5918mm
Length - Termination 0.309 inch
Compliance
RoHS Status ROHS3 Compliant
