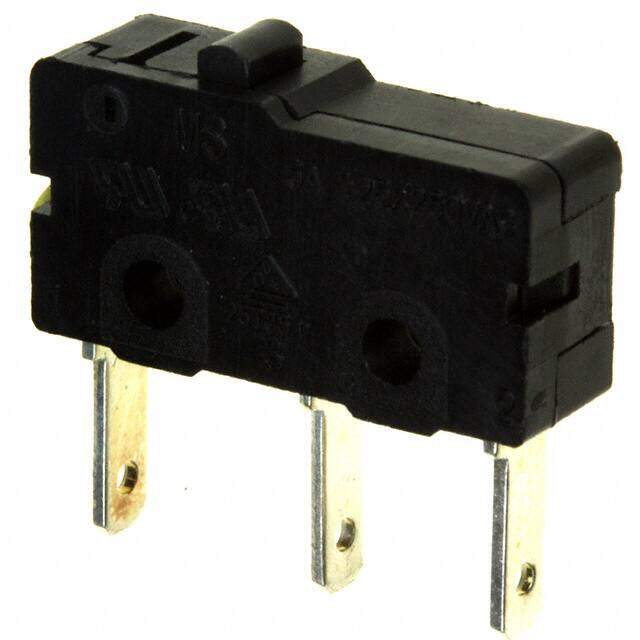

MS0850500F060C1A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $0.67
Unit Price: USD $0.674831
≥1 USD $0.674831
Inventory: 5130
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2008
Series MS
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
ECCN Code EAR99
Current Rating (Amps) 5A AC
Current Rating 5A
Termination Style Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 125V
Actuator Type Round (Pin Plunger)
Circuit SPDT
Switch Function On-Mom
Electrical Life 50,000 Cycles
Mechanical Life 1,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Contact Current Rating 5A
Operating Force 60gf
Pretravel 0.043 (1.1mm)
Operating Position 0.335 (8.5mm)
Release Force 25gf
Compliance
RoHS Status ROHS3 Compliant
