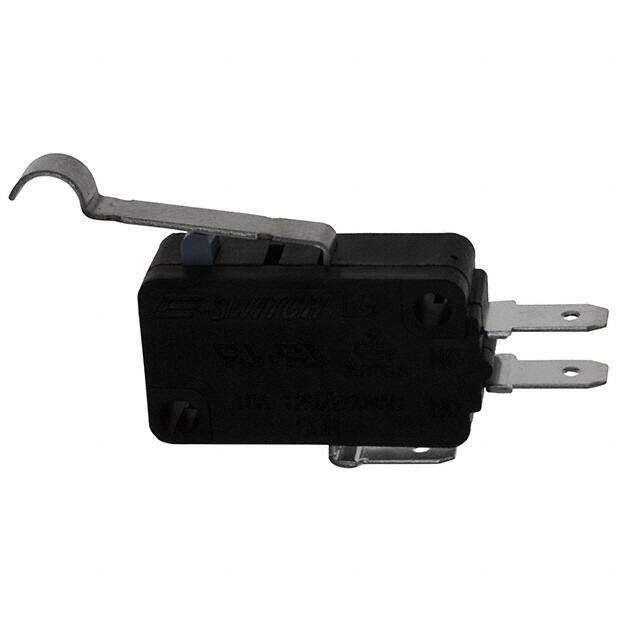

LS0851504F140C1A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 15A 125V
PDF
/
Buying Options
Total Price: USD $2.02
Unit Price: USD $2.0152
≥1 USD $2.0152
≥10 USD $1.86032
≥100 USD $1.743808
≥500 USD $1.705088
≥1000 USD $1.356344
≥3000 USD $1.278816
Inventory: 181
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Housing Material POLYBUTYLENE TEREPHTHALATE
Actuator Material POLYBUTYLENE TEREPHTHALATE
Terminal Material COPPER ALLOY
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2005
Series LS
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
ECCN Code EAR99
Current Rating (Amps) 15A AC
Current Rating 15A
Termination Style Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 125V
Body Length or Diameter 28.8798mm
Body Breadth 10.3124 mm
Actuator Type Lever, Simulated Roller
Circuit SPDT
Switch Function On-Mom
Contact Resistance 0.1mOhm
Insulation Resistance 100000000Ohm
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 50,000 Cycles
Mechanical Life 1,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Contact Current Rating 15A
Operating Force 140gf
Contact (AC) Max Rating R Load 15A@250VAC
Contact Timing SNAP ACTION
Contact Voltage(AC)-Max 250V
Pretravel 0.205 (5.2mm)
Operating Position 0.748 (19.0mm)
Release Force 40gf
Dimensions
Body Height 19.05mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
