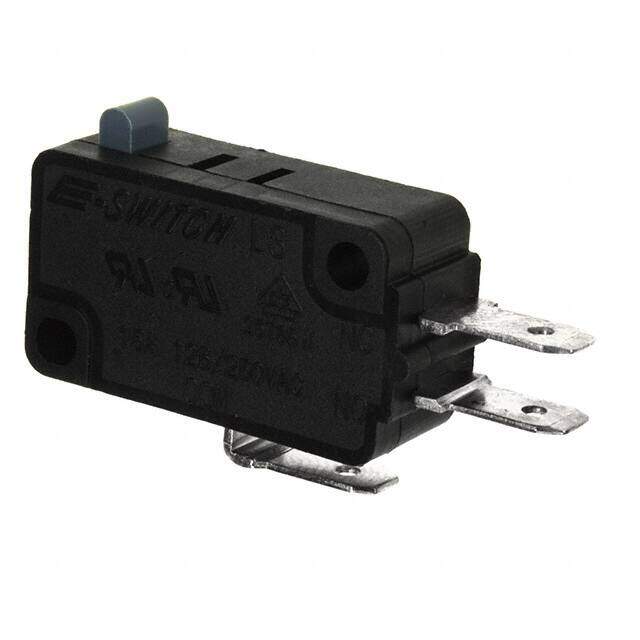

LS0851500F160C1A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 15A 125V
PDF
/
Buying Options
Total Price: USD $1.33
Unit Price: USD $1.3288
≥1 USD $1.3288
≥10 USD $1.22496
≥100 USD $1.148576
≥500 USD $1.123056
≥1000 USD $0.898656
Inventory: 414
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Body Height 19.05mm
Technical
Release Force 40gf
Operating Position 0.579 (14.7mm)
Pretravel 0.080 (2.0mm)
Contact Voltage(AC)-Max 250V
Contact (AC) Max Rating R Load 15A@250VAC
Operating Force 160gf
Contact Current Rating 15A
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 1,000,000 Cycles
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Insulation Resistance 100000000Ohm
Contact Resistance 0.1mOhm
Switch Function On-Mom
Circuit SPDT
Actuator Type Round (Pin Plunger)
Body Breadth 10.3124 mm
Body Length or Diameter 28.8798mm
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.187 (4.7mm)
Current Rating 15A
Current Rating (Amps) 15A AC
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series LS
Published 2008
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Terminal Material COPPER ALLOY
Actuator Material POLYBUTYLENE TEREPHTHALATE
Housing Material POLYBUTYLENE TEREPHTHALATE
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 11 Weeks
