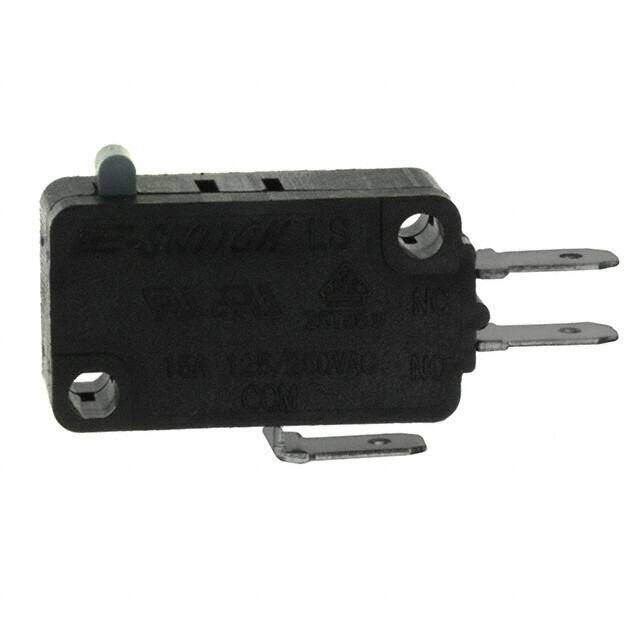

LS0851500F100C1A
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 15A 125V
PDF
/
Buying Options
Total Price: USD $1.89
Unit Price: USD $1.892
≥1 USD $1.892
≥10 USD $1.7424
≥100 USD $1.633984
≥500 USD $1.597552
≥1000 USD $1.27072
≥3000 USD $1.198146
Inventory: 1179
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
Release Force 30gf
Operating Position 0.579 (14.7mm)
Pretravel 0.080 (2.0mm)
Operating Force 100gf
Contact Current Rating 15A
Switch Type SNAP ACTING/LIMIT SWITCH
Mechanical Life 1,000,000 Cycles
Electrical Life 50,000 Cycles
Switch Function On-Mom
Circuit SPDT
Actuator Type Round (Pin Plunger)
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.187 (4.7mm)
Current Rating 15A
Current Rating (Amps) 15A AC
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series LS
Published 2005
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Package / Case 100
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 11 Weeks
