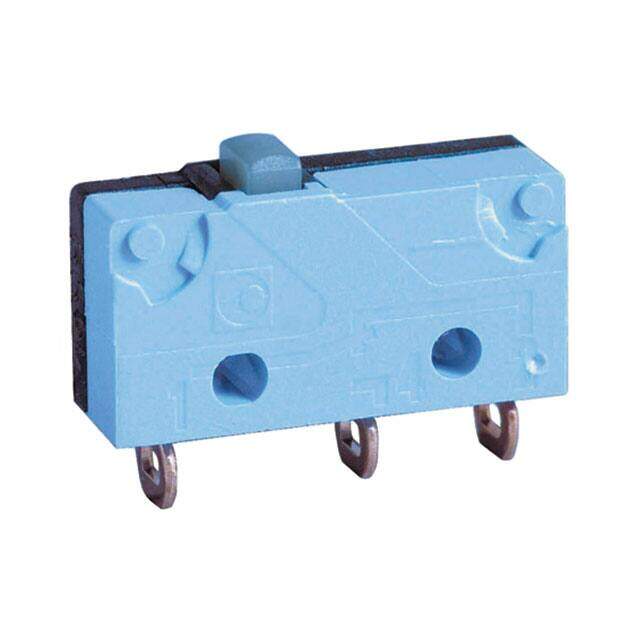

83278601
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACT SPST-NC 50MA 24V
PDF
/
Inventory: 4642
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -20°C~150°C
Packaging Bulk
Published 2009
Series V4D
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Voltage - Rated DC 24V
Current Rating (Amps) 50mA AC/DC
Termination Style Solder Lug
Voltage - Rated AC 24V
Actuator Type Round (Pin Plunger)
Circuit SPST-NC
Switch Function On-Mom
Mechanical Life 500,000 Cycles
Operating Force 153gf
Overtravel 0.020 (0.5mm)
Differential Travel 0.006 (0.15mm)
Operating Position 0.330 (8.4mm)
Release Force 31gf
Compliance
RoHS Status RoHS Compliant
Alternative Model
