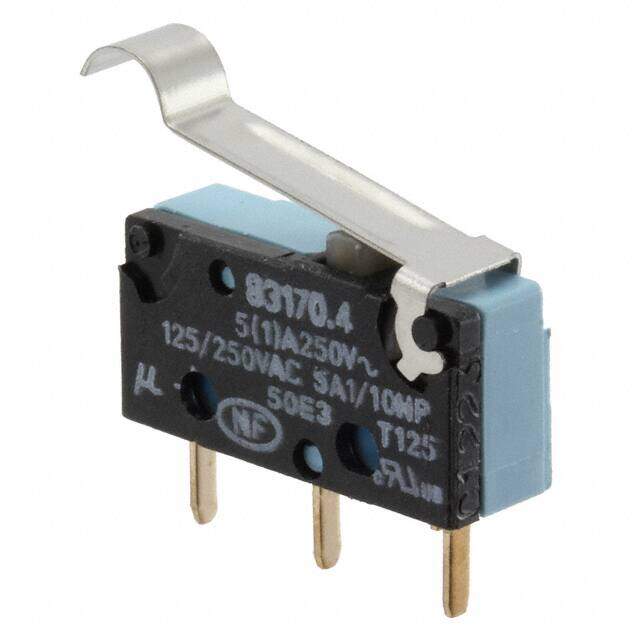

831704C4.FL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
Basic / Snap Action Switches SNSW 5A PCB SIMRLR 79218472
PDF
/
Buying Options
Total Price: USD $3.73
Unit Price: USD $3.733346
≥1 USD $3.733346
≥10 USD $3.522028
≥100 USD $3.322667
≥500 USD $3.134593
≥1000 USD $2.957165
Inventory: 2636
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP67
RoHS Status RoHS Compliant
Technical
Release Force 3.500gf
Operating Position 0.512 (13.0mm)
Differential Travel 0.018 (0.45mm)
Overtravel 0.060 (1.5mm)
Operating Force 20gf
Mechanical Life 30,000,000 Cycles
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Simulated Roller
Voltage - Rated AC 250V
Termination Style PC Pin
Current Rating 5A
Current Rating (Amps) 5A AC
Voltage - Rated DC 4V
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Actuator Mounted Left Side
Series 83170
Packaging Bulk
Operating Temperature -20°C~130°C
Physical
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
