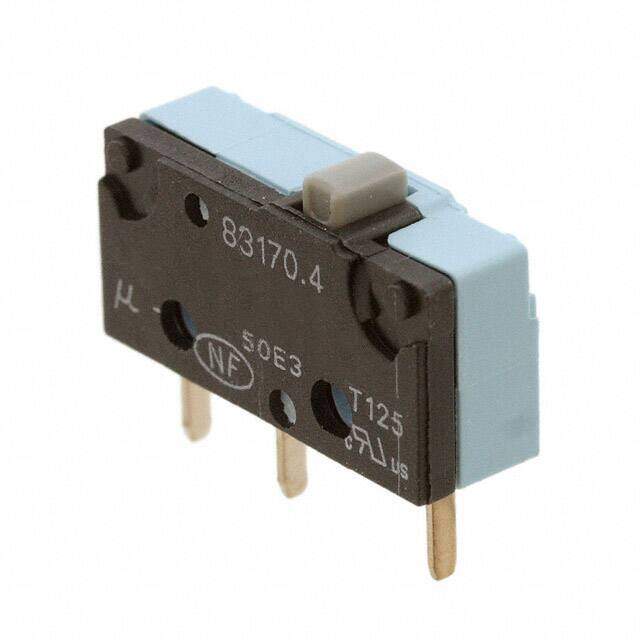

831704C3.0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
Basic / Snap Action Switches SNSW 5A PCB BTM ASYM NONE
PDF
/
Inventory: 3278
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP67
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Technical
Release Force 10gf
Operating Position 0.330 (8.4mm)
Differential Travel 0.006 (0.15mm)
Overtravel 0.020 (0.5mm)
Operating Force 61gf
Contact Current Rating 5A
Mechanical Life 30,000,000 Cycles
Throw Configuration SPDT
Number of Poles 1
Switch Function On-Mom
Circuit SPDT
Actuator Type Round (Pin Plunger)
Approval Agency UL
Voltage - Rated AC 250V
Termination Style PC Pin
Current Rating 5A
Current Rating (Amps) 5A AC
Voltage - Rated DC 4V
Min Operating Temperature -20°C
Max Operating Temperature 125°C
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 83170
Packaging Bulk
Operating Temperature -20°C~130°C
Physical
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 5 Weeks
