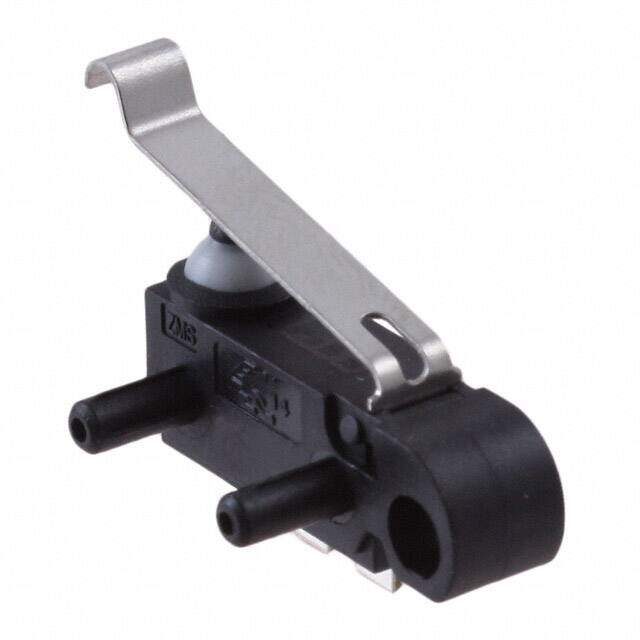

ZMSMH3130T11SRC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 3A 125V
PDF
/
Inventory: 5190
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Release Force 45gf
Operating Position 0.390 (9.9mm)
Pretravel 0.188 (4.8mm)
Differential Travel 0.027 (0.7mm)
Overtravel 0.101 (2.57mm)
Operating Force 160gf
Throw Configuration SPDT
Electrical Life 100,000 Cycles
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Simulated Roller
Voltage - Rated AC 125V
Termination Style Solder Lug
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 3A AC/DC
Voltage - Rated DC 12V
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Support Posts
Series ZMSM
Published 2012
Packaging Bulk
Operating Temperature -40°C~120°C
Physical
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 11 Weeks
