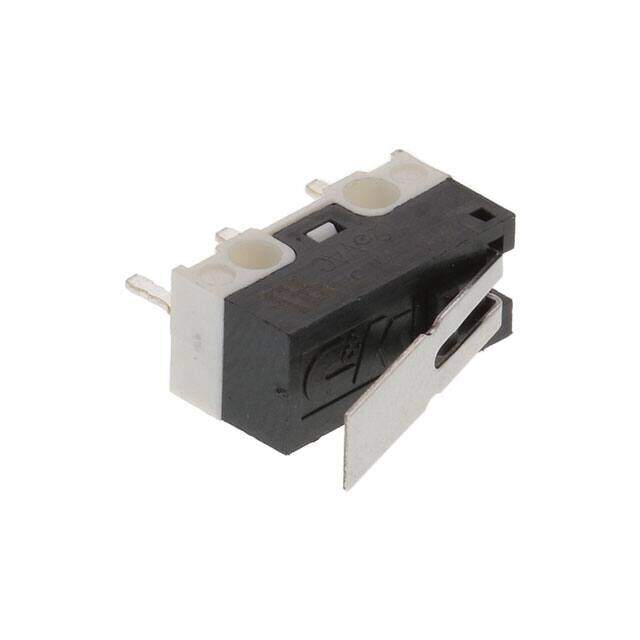

ZMCJF7L0T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $2.54
Unit Price: USD $2.5432
≥1 USD $2.5432
≥10 USD $2.35048
≥100 USD $2.203872
≥500 USD $2.1549
≥1000 USD $1.71402
≥3000 USD $1.616094
Inventory: 43
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Silver
Contact Plating Gold
Mount Screw, Through Hole
Mounting Type Through Hole
Technical
Operating Temperature -30°C~85°C
Packaging Tray
Published 2015
Series ZM
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Current Rating (Amps) 3A AC
Orientation Straight
Depth 5.8mm
Current Rating 1A
Termination Style PC Pin
Voltage - Rated AC 125V
Actuator Type Lever, Leaf
Circuit SPDT
Switch Function On-Mom
Max Voltage Rating (AC) 250V
Max Current Rating 3A
Electrical Life 15,000 Cycles
Operating Force 50gf
Operating Position 0.330 (8.4mm)
Dimensions
Length 13.68mm
Width 5.8mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
