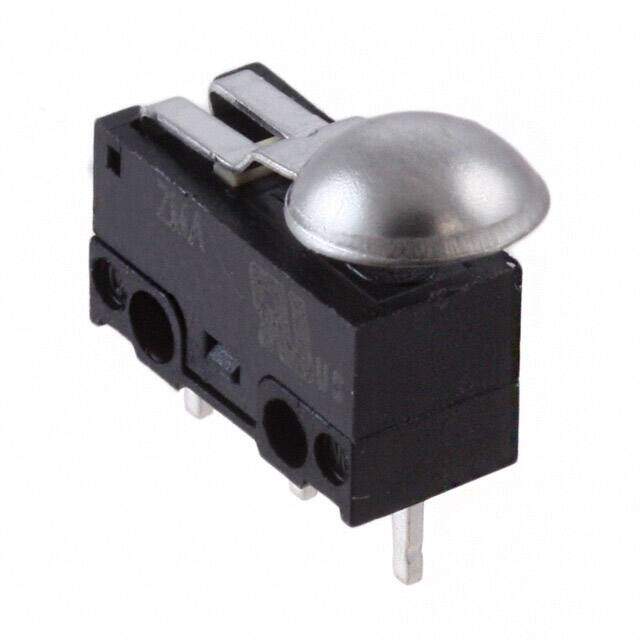

ZMA03A150S06PC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SW SNAPACT SPDT 3A ROLL T/H 125V
PDF
/
Buying Options
Total Price: USD $1.31
Unit Price: USD $1.3112
≥1 USD $1.3112
≥10 USD $1.23288
≥100 USD $1.183776
≥500 USD $1.13454
≥1000 USD $1.085216
≥3000 USD $0.863254
Inventory: 578
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Silver
Mount Screw, Through Hole
Mounting Type Through Hole
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2009
Series ZMA
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Voltage - Rated DC 24V
Current Rating (Amps) 3A AC/DC
Orientation Straight
Depth 5.8mm
Current Rating 3A
Termination Style PC Pin
Voltage - Rated AC 125V
Actuator Type Lever, Simulated Roller
Circuit SPDT
Switch Function On-Mom
Max Voltage Rating (AC) 125V
Max Current Rating 3A
Electrical Life 10,000 Cycles
Max Voltage Rating (DC) 30V
Mechanical Life 1,000,000 Cycles
Operating Force 49gf
Overtravel 0.049 (1.25mm)
Pretravel 0.055 (1.4mm)
Operating Position 0.420 (10.7mm)
Release Force 11gf
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
