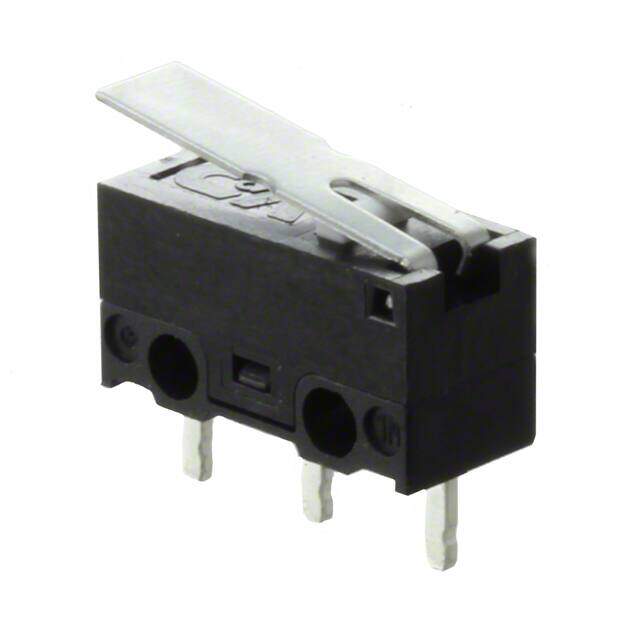

ZMA00A080L04PC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
Basic / Snap Action Switches SPDT, On-Mom, PC Pin Snap Action Switch
PDF
/
Buying Options
Total Price: USD $0.99
Unit Price: USD $0.9944
≥1 USD $0.9944
≥10 USD $0.93984
≥100 USD $0.902176
≥500 USD $0.86482
≥1000 USD $0.827112
≥3000 USD $0.65795
Inventory: 3231
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length 13.55mm
Technical
Release Force 5.000gf
Operating Position 0.312 (7.9mm)
Pretravel 0.120 (3.0mm)
Overtravel 0.025 (0.6mm)
Operating Force 30gf
Contact Current Rating 100mA
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 30V
Electrical Life 300,000 Cycles
Max Current Rating 100mA
Max Voltage Rating (AC) 125V
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Straight
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 100mA
Depth 5.8mm
Orientation Straight
Current Rating (Amps) 100mA AC/DC
Voltage - Rated DC 60V
Power Rating 400mW
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series ZMA
Published 2014
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Mounting Type Through Hole
Mount Screw, Through Hole
Contact Plating Silver
Contact Material Gold, Silver
Supply Chain
Factory Lead Time 11 Weeks
