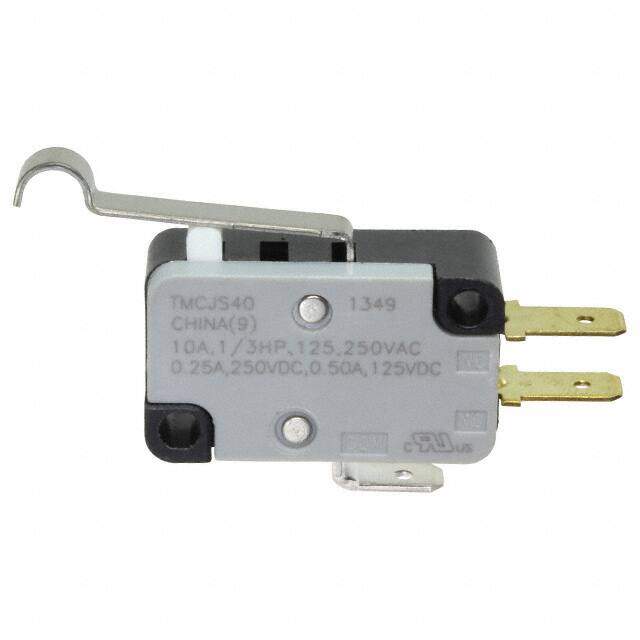

TMCJD6ST1440C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
Basic / Snap Action Switches Snap
PDF
/
Buying Options
Total Price: USD $8.5
Unit Price: USD $8.5008
≥1 USD $8.5008
≥10 USD $6.79712
≥100 USD $6.457792
≥500 USD $6.287776
≥1000 USD $5.438048
≥3000 USD $5.098157
Inventory: 54
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 48.2mm
Technical
Release Force 20gf
Operating Position 0.745 (18.9mm)
Pretravel 0.140 (3.6mm)
Differential Travel 0.050 (1.3mm)
Overtravel 0.062 (1.6mm)
Operating Force 90gf
Max Voltage Rating (DC) 250V
Electrical Life 350000 cycles
Max Current Rating 10A
Max Voltage Rating (AC) 250V
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Simulated Roller
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.187 (4.7mm)
Current Rating 10A
Depth 10.2mm
Orientation Straight
Current Rating (Amps) 10A AC 500mA DC
Voltage - Rated DC 125V
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series TM
Published 2012
Packaging Bulk
Operating Temperature -55°C~150°C
Physical
Actuator Material Thermoplastic
Mounting Type Chassis Mount
Mount Chassis Mount, Screw
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
