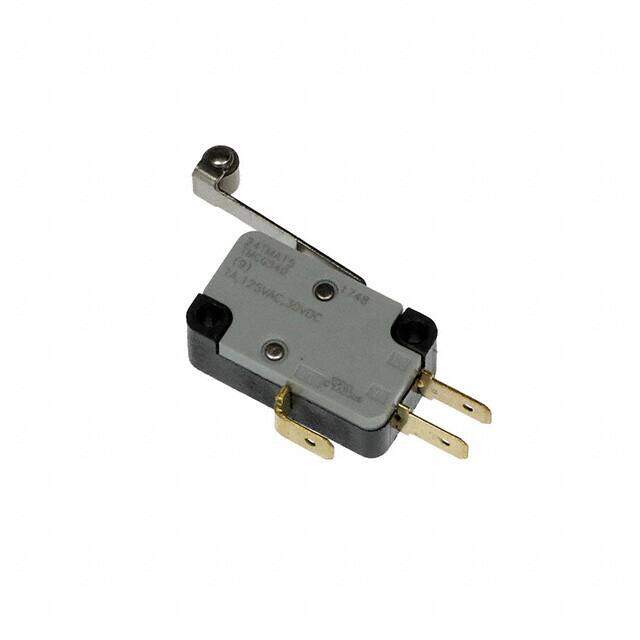

TMCGF5SA1540C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
Basic / Snap Action Switches Snap
PDF
/
Buying Options
Total Price: USD $8.01
Unit Price: USD $8.008
≥1 USD $8.008
≥10 USD $6.4064
≥100 USD $6.08608
≥500 USD $5.92592
≥1000 USD $5.125208
≥3000 USD $4.80487
Inventory: 93
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Gold
Mount Chassis Mount, Screw
Mounting Type Chassis Mount
Actuator Material Thermoplastic
Technical
Operating Temperature -55°C~150°C
Packaging Bulk
Published 2012
Series TM
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
Voltage - Rated DC 30V
Current Rating (Amps) 1A AC/DC
Orientation Straight
Depth 10.2mm
Current Rating 1A
Termination Style Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 125V
Actuator Type Lever, Roller
Circuit SPDT
Switch Function On-Mom
Max Voltage Rating (AC) 125V
Max Current Rating 1A
Electrical Life 350000 cycles
Max Voltage Rating (DC) 30V
Operating Force 45gf
Overtravel 0.065 (1.7mm)
Differential Travel 0.030 (0.76mm)
Pretravel 0.161 (4.1mm)
Operating Position 0.812 (20.6mm)
Release Force 10gf
Dimensions
Length 49.1mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
