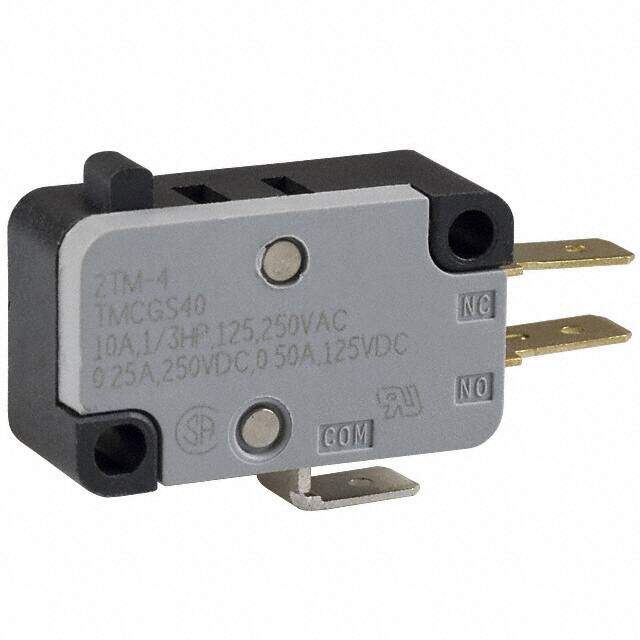

TMCGD6SP0040C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 10A 125V
PDF
/
Buying Options
Total Price: USD $7.03
Unit Price: USD $7.0312
≥1 USD $7.0312
≥10 USD $5.62408
≥100 USD $4.49944
≥500 USD $3.86672
Inventory: 102
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Silver
Mount Chassis Mount, Screw
Mounting Type Chassis Mount
Actuator Material Thermoplastic
Technical
Operating Temperature -55°C~150°C
Packaging Bulk
Published 2012
Series TM
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
Number of Positions 2
Voltage - Rated DC 125V
Current Rating (Amps) 10A AC 500mA DC
Orientation Straight
Depth 10.2mm
Current Rating 10A
Termination Style Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 125V
Approval Agency CSA, UL
Actuator Type Round (Pin Plunger)
Circuit SPDT
Switch Function On-Mom
Max Voltage Rating (AC) 250V
Max Current Rating 10A
Electrical Life 350,000 Cycles
Number of Poles 1
Max Voltage Rating (DC) 250V
Operating Force 75gf
Overtravel 0.035 (0.9mm)
Differential Travel 0.013 (0.33mm)
Pretravel 0.055 (1.4mm)
Operating Position 0.579 (14.7mm)
Release Force 28gf
Dimensions
Length 37.6mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
