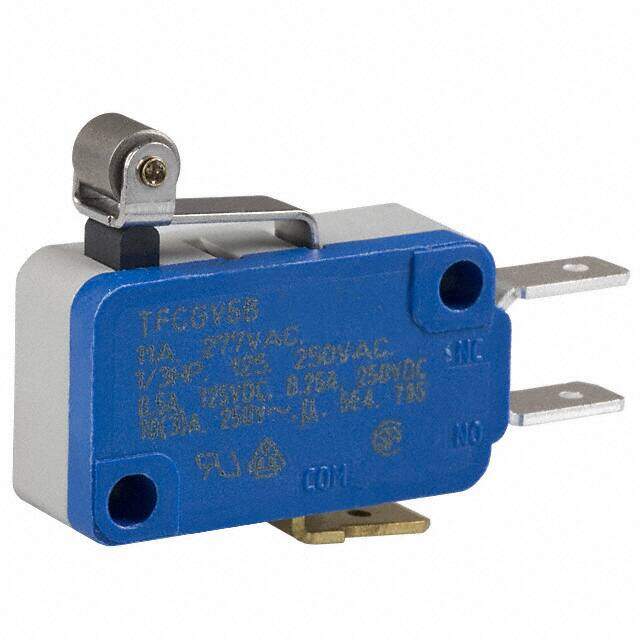

TFCGV3VA105BC
RoHS
/
Package /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 11A 277V
PDF
/
Inventory: 9551
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Silver
Mount Chassis Mount, Panel, Screw
Mounting Type Chassis Mount
Housing Material Thermoplastic
Actuator Material Thermoplastic
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2012
Series TF
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Voltage - Rated DC 250V
Current Rating (Amps) 11A AC 500mA DC
Orientation Straight
Depth 10.2mm
Current Rating 11A
Termination Style Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 277V
Actuator Type Lever, Roller
Circuit SPDT
Switch Function On-Mom
Electrical Life 300000 cycles
Throw Configuration SPDT
Max Voltage Rating (DC) 250V
Operating Force 90gf
Overtravel 0.030 (0.76mm)
Differential Travel 0.015 (0.38mm)
Pretravel 0.060 (1.5mm)
Operating Position 0.812 (20.6mm)
Release Force 15gf
Dimensions
Length 39.9mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
