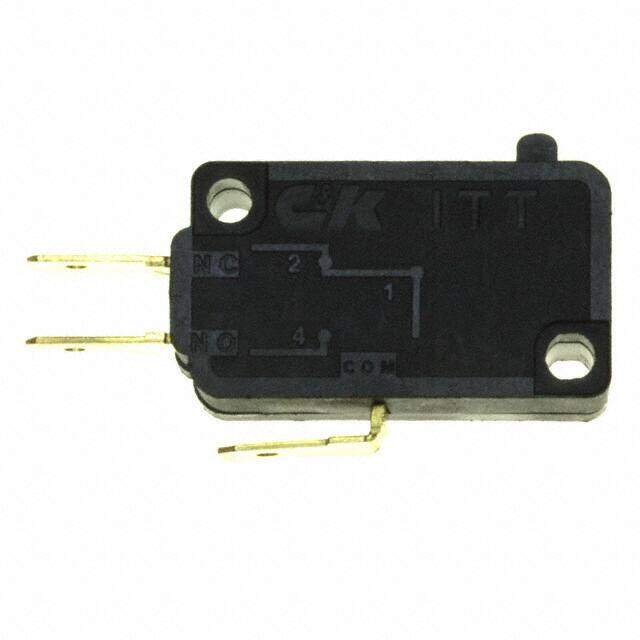

TFCDH8SP0040C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 5A 277V
PDF
/
Buying Options
Total Price: USD $6.41
Unit Price: USD $6.413968
≥1 USD $6.413968
≥10 USD $6.050916
≥100 USD $5.70841
≥500 USD $5.385293
≥1000 USD $5.080463
Inventory: 1245
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Silver
Mount Chassis Mount, Screw
Mounting Type Chassis Mount
Actuator Material Thermoplastic
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2012
Series TF
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
Current Rating (Amps) 5A AC
Orientation Straight
Depth 10.2mm
Current Rating 5A
Termination Style Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 277V
Actuator Type Round (Pin Plunger)
Circuit SPDT
Switch Function On-Mom
Max Voltage Rating (AC) 277V
Max Current Rating 5A
Electrical Life 300,000 Cycles
Operating Force 25gf
Overtravel 0.050 (1.27mm)
Differential Travel 0.010 (0.25mm)
Pretravel 0.047 (1.2mm)
Operating Position 0.579 (14.7mm)
Release Force 10gf
Dimensions
Length 38.4mm
Compliance
RoHS Status ROHS3 Compliant
