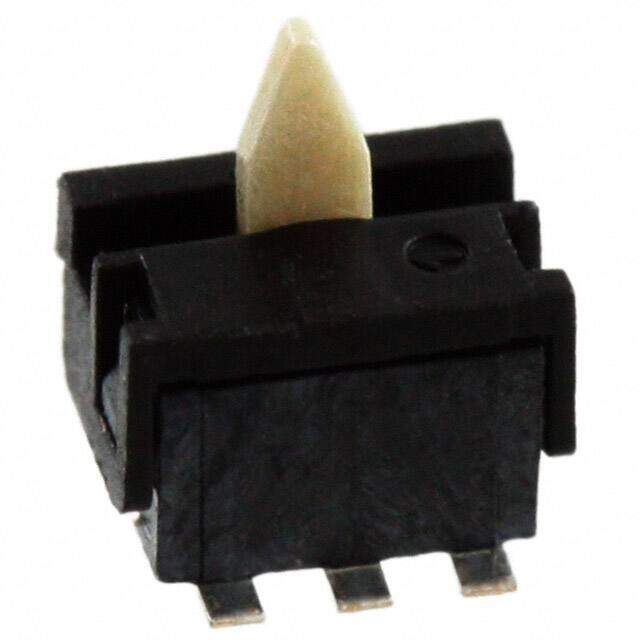

SDT004
RoHS
/
Package SMD/SMT
Category Switches / Snap Action, Limit Switches
Description
SWITCH DETECT MICRO-MINI SMD
PDF
/
Buying Options
Total Price: USD $3.12
Unit Price: USD $3.1198
≥1 USD $3.1198
≥10 USD $2.5593
≥100 USD $2.4795
≥500 USD $2.3997
≥1000 USD $2.3199
Inventory: 2209
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Actuator Length 1.1mm
Technical
Operating Force 30gf
Mechanical Life 100000 cycles
Max Voltage Rating (DC) 5V
Electrical Life 100000 cycles
Contact Resistance 1Ohm
Switch Function Mom-Off-Mom
Circuit SPDT
Actuator Type Angled Toggle (Detector)
Termination Style Gull Wing
Orientation Straight
Current Rating (Amps) 1mA DC
Min Operating Temperature -20°C
Max Operating Temperature 70°C
Termination Gull Wing
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series SDT
Published 2010
Packaging Tape & Reel (TR)
Physical
Package / Case SMD/SMT
Mounting Type Surface Mount
Mount Surface Mount
