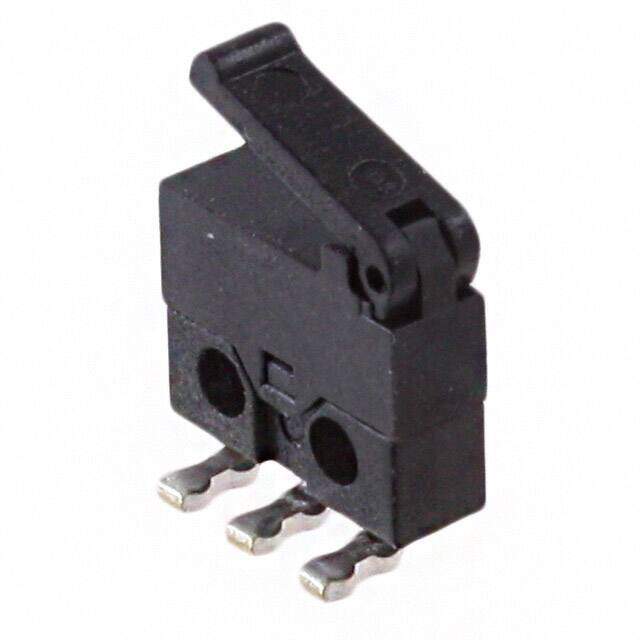

MDS6500AL02RS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACT SPDT 300MA 30V
PDF
/
Buying Options
Total Price: USD $2.1
Unit Price: USD $2.1032
≥1 USD $2.1032
≥10 USD $1.93776
≥100 USD $1.81632
≥500 USD $1.776016
≥1000 USD $1.4212
Inventory: 1164
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 2.65mm
Technical
Release Force 3.000gf
Operating Position 0.264 (6.7mm)
Pretravel 0.071 (1.8mm)
Overtravel 0.011 (0.3mm)
Operating Force 50gf
Contact Current Rating 300mA
Mechanical Life 30,000 Cycles
Max Voltage Rating (DC) 30V
Throw Configuration SPDT
Electrical Life 30,000 Cycles
Contact Resistance 200mOhm
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Straight
Termination Style PC Pin
Current Rating 300mA
Orientation Right Angle
Current Rating (Amps) 300mA DC
Voltage - Rated DC 30V
Min Operating Temperature -25°C
Max Operating Temperature 70°C
Termination PC Pin
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series MDS
Published 2011
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Number of Pins 3
Mounting Type Through Hole, Right Angle
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
