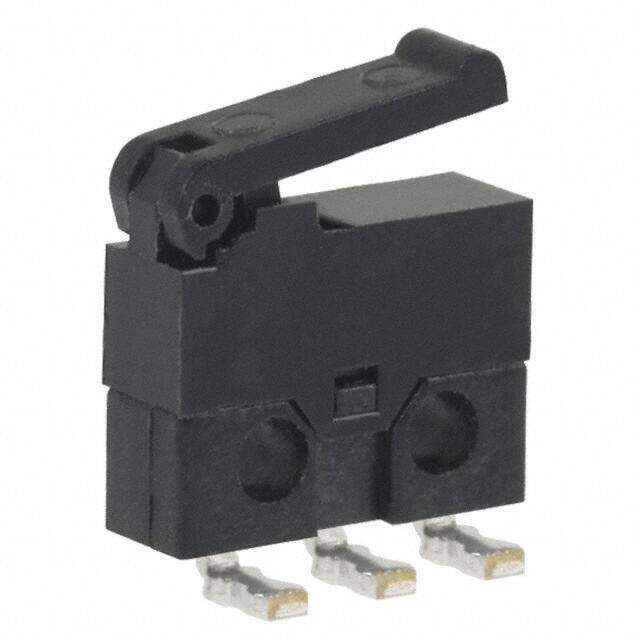

MDS002
RoHS
/
Package /
Category Switches / Snap Action, Limit Switches
Description
SWITCH DETECT SNAPACT SPDT LEFT
PDF
/
Inventory: 5466
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Silver
Mount Through Hole
Mounting Type Through Hole, Right Angle
Technical
Operating Temperature -10°C~60°C
Packaging Bulk
Published 2006
Series MDS
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Voltage - Rated DC 30V
Current Rating (Amps) 300mA DC
Orientation Right Angle
Current Rating 300mA
Termination Style PC Pin
Actuator Type Lever, Straight
Circuit SPDT
Switch Function On-Mom
Electrical Life 30,000 Cycles
Throw Configuration SPDT
Mechanical Life 30,000 Cycles
Operating Force 50gf
Release Force 3.000gf
Dimensions
Height 7.6mm
Length 8.2mm
Width 2.7mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
