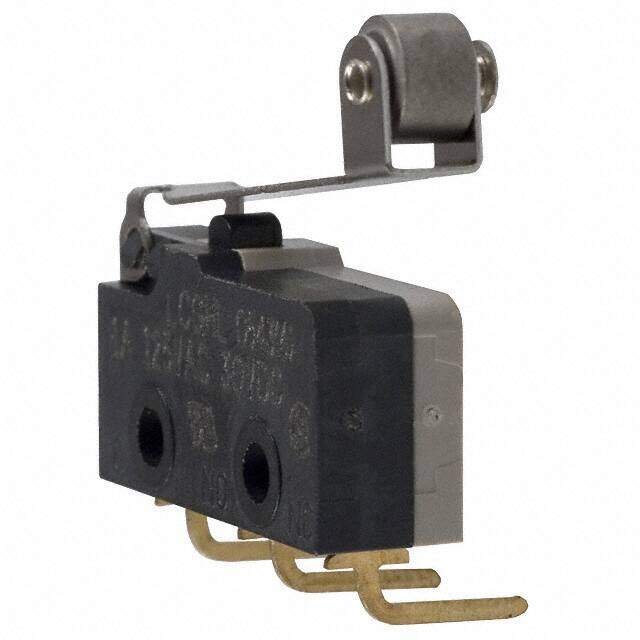

LCGHF5A10LC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 1A 125V
PDF
/
Buying Options
Total Price: USD $12.55
Unit Price: USD $12.5488
≥1 USD $12.5488
≥10 USD $9.73192
≥100 USD $9.219936
≥500 USD $8.7076
Inventory: 112
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length 24.18mm
Technical
Release Force 12gf
Operating Position 0.560 (14.2mm)
Pretravel 0.140 (3.6mm)
Differential Travel 0.034 (0.86mm)
Overtravel 0.029 (0.74mm)
Operating Force 57gf
Max Voltage Rating (DC) 30V
Electrical Life 6,000 Cycles
Max Current Rating 1A
Max Voltage Rating (AC) 125V
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Roller
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 1A
Depth 19.73mm
Orientation Right Angle
Current Rating (Amps) 1A AC/DC
Voltage - Rated DC 30V
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series LC
Published 2014
Packaging Tray
Operating Temperature -25°C~85°C
Physical
Actuator Material Polyester, Thermoplastic
Housing Material Polyester
Mounting Type Through Hole
Mount Screw, Through Hole
Contact Plating Gold
Contact Material Silver
Supply Chain
Factory Lead Time 11 Weeks
