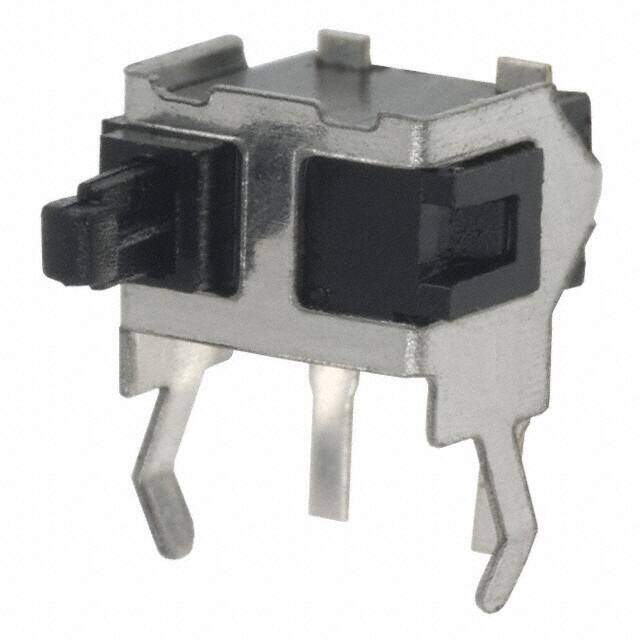

DDS003
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPST-NO 100MA
PDF
/
Buying Options
Total Price: USD $1.26
Unit Price: USD $1.2584
≥1 USD $1.2584
≥10 USD $1.18448
≥100 USD $1.13696
≥500 USD $1.08966
≥1000 USD $1.042254
≥3000 USD $0.829039
Inventory: 317
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 2.4mm
Width 3.7mm
Length 6.3mm
Height 6.1mm
Technical
Operating Position 0.197 (5.0mm)
Overtravel 0.079 (2.0mm)
Operating Force 40gf
Contact Current Rating 100mA
Mechanical Life 50,000 Cycles
Max Voltage Rating (DC) 30V
Throw Configuration SPST
Electrical Life 50,000 Cycles
Contact Resistance 150mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Overtravel Plunger
Termination Style PC Pin
Current Rating 100mA
Orientation Right Angle
Current Rating (Amps) 100mA DC
Voltage - Rated DC 30V
Termination PC Pin
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series DDS
Published 2010
Packaging Tray
Operating Temperature -20°C~70°C
Physical
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
