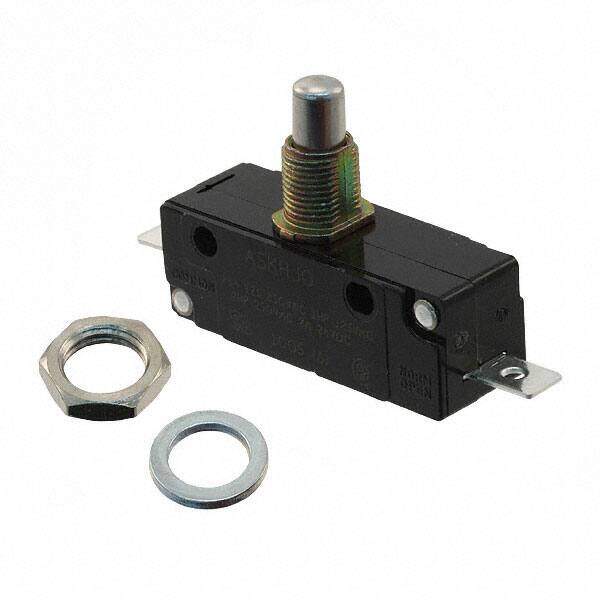

ASKHF3J04AY
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACT SPST-NO 25A 125V
PDF
/
Buying Options
Total Price: USD $9.64
Unit Price: USD $9.6448
≥1 USD $9.6448
≥10 USD $7.48264
≥100 USD $7.088928
≥500 USD $6.69504
≥1000 USD $6.104296
≥3000 USD $5.710496
Inventory: 1116
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Silver
Mount Panel, Screw
Mounting Type Panel Mount
Actuator Material Phenolic
Technical
Operating Temperature -55°C~85°C
Packaging Bulk
Published 2012
Series A
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
Voltage - Rated DC 24V
Current Rating (Amps) 25A AC 2A DC
Orientation Straight
Depth 16.3mm
Current Rating 2A
Termination Style Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC 125V
Actuator Type Overtravel Plunger
Circuit SPST-NO
Switch Function Off-Mom
Max Voltage Rating (AC) 250V
Max Current Rating 25A
Electrical Life 75,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 24V
Operating Force 567gf
Overtravel 0.187 (4.75mm)
Pretravel 0.050 (1.27mm)
Release Force 85gf
Dimensions
Length 65.4mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
