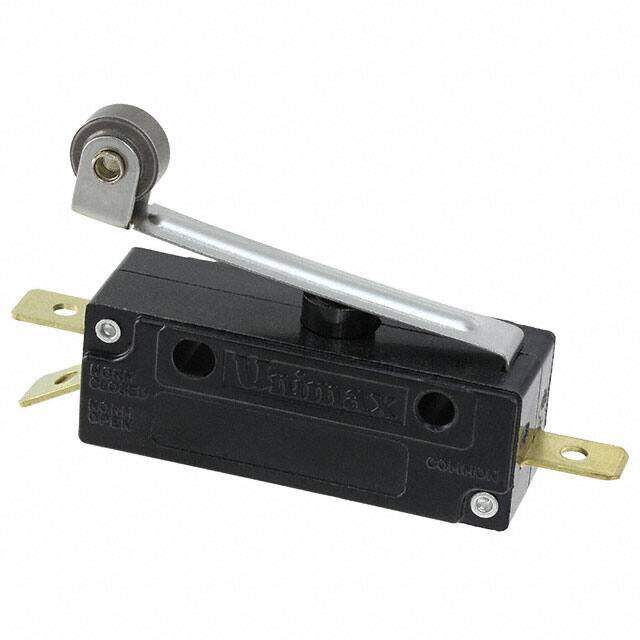

ASKHC2W04AC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
Switch Snap Action N.O./N.C. SPDT Leaf Roller Lever Quick Connect 15A 250VAC 1118.55VA 3.33N Screw Mount
PDF
/
Buying Options
Total Price: USD $8.72
Unit Price: USD $8.7208
≥1 USD $8.7208
≥10 USD $6.97312
≥100 USD $6.624992
≥500 USD $6.45062
≥1000 USD $5.578874
≥3000 USD $5.230148
Inventory: 201
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 60.97mm
Technical
Release Force 28gf
Operating Position 0.718 (18.24mm)
Pretravel 0.281 (7.14mm)
Overtravel 0.062 (1.6mm)
Operating Force 340gf
Electrical Life 200,000 Cycles
Max Current Rating 15A
Max Voltage Rating (AC) 250V
Switch Function On-Mom
Circuit SPDT
Actuator Type Lever, Roller
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.250 (6.3mm)
Current Rating 15A
Depth 16.3mm
Orientation Straight
Current Rating (Amps) 15A AC
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series A
Published 2012
Packaging Tray
Operating Temperature -55°C~85°C
Physical
Housing Material Phenolic
Mounting Type Chassis Mount
Mount Chassis Mount, Panel, Screw
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
