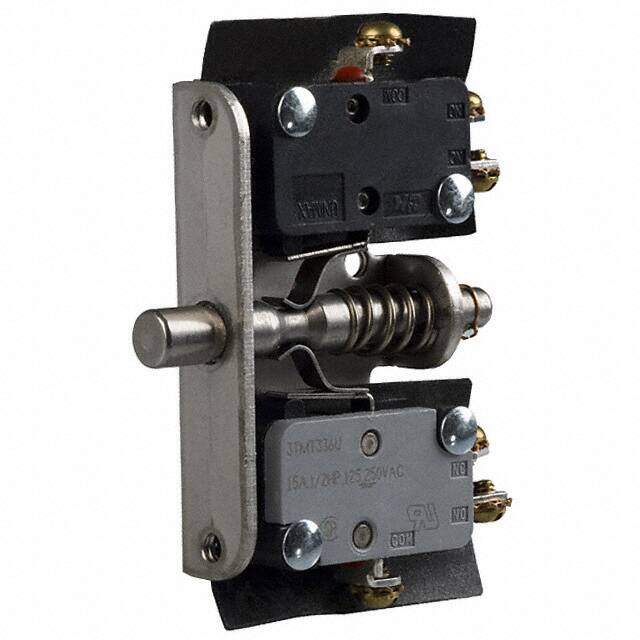

23TL604
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACT SPDTX2 15A 125V
PDF
/
Buying Options
Total Price: USD $6395.76
Unit Price: USD $59.22
≥108 USD $59.22
Inventory: 108
Minimum: 108
-
+
Technical Details
Technical
Circuit SPDT x 2
Actuator Type Push-Pull Plunger
Voltage - Rated AC 125V
Termination Style Screw Terminal
Current Rating 15A
Current Rating (Amps) 15A AC 500mA DC
Voltage - Rated DC 125V
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series TL
Published 2010
Packaging Bulk
Operating Temperature -55°C~150°C
Max Voltage Rating (DC) 250V
Throw Configuration DPDT, SPDT
Electrical Life 150,000 Cycles
Max Current Rating 15A
Max Voltage Rating (AC) 250V
Switch Function On-Mom
Physical
Mounting Type Chassis Mount
Mount Chassis Mount, Screw
Supply Chain
Factory Lead Time 11 Weeks
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
