TG36Y000000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Slide Switches
Description

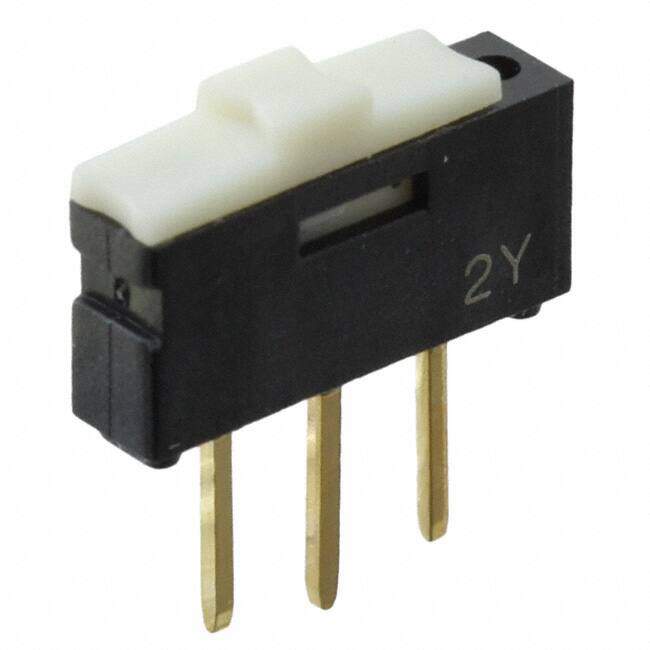

Standard TG 2 Through Hole Slide Switch 3.00mm 0.02A 1000VRMS V .02A@20VAC
PDF
/
Buying Options
Total Price: USD $13.87
Unit Price: USD $13.872101
≥1 USD $13.872101
≥200 USD $5.535186
≥500 USD $5.350068
≥1000 USD $5.259477
Inventory: 8572
Minimum: 1
-
+
Technical Details
Technical
Switch Type SLIDE SWITCH
Contact Current(AC)-Max 0.02A
Contact (AC) Max Rating R Load .02A@20VAC
Contact Timing Not Specified
Contact (DC) Max Rating R Load .02A@20VDC
PCB Hole Count 5
Switch Travel 2.60mm
Solderability WAVE
Contact (DC) Max Power Rating R Load 0.4VA@20VDC
Washability SOLVENT
Electrical Life 60,000 Cycles
Dielectric Withstanding Voltage 1000VRMS V
Sealing EPOXY TERMINAL SEALED
Contact Current(DC)-Max 0.02A
Insulation Resistance 1000000000Ohm
Contact Resistance 0.02mOhm
Switch Function On-On
Circuit SPDT
Actuator Type Standard
Body Breadth 5 mm
Body Length or Diameter 10.16mm
Voltage - Rated AC 20V
Termination Style PC Pin
Contact Finish Gold
Orientation Vertical
Packing Method BULK
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
HTS Code 8536.50.90.50
Number of Positions 2
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series TG
Packaging Tray
Operating Temperature -30°C~85°C
Physical
Actuator Material Thermoplastic
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 3.00mm
Length - Termination 0.129 inch
Body Height 9.6mm
