180000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Single Conductor Cables (Hook-Up Wire)
Description

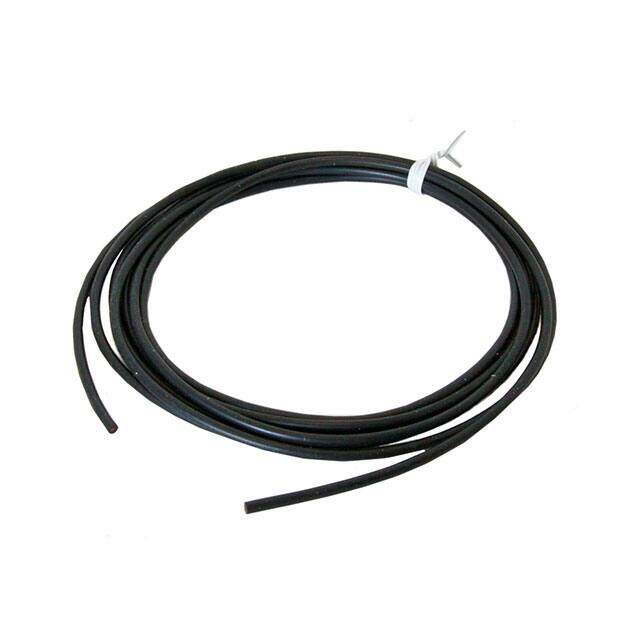

TEST LEAD 18AWG 3000V BLACK 10'
PDF
/
Buying Options
Total Price: USD $18.88
Unit Price: USD $18.882128
≥1 USD $18.882128
Inventory: 1142
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Mount Cable
Insulation Material Rubber
Conductor Material Copper, Bare
Jacket (Insulation) Material Silicone Rubber
Technical
Operating Temperature -80°C~150°C
Published 2007
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 150°C
Min Operating Temperature -80°C
Color Black
Voltage - Rated DC 3kV
Number of Conductors 1
Wire Gauge 18 AWG
Voltage 3000V
Max Current Rating 22A
Cable Type Test Lead
Wire/Cable Type Test Lead
Cable Length 3.048m
Wire/Cable Gauge 18 AWG
Jacket Color Black
Conductor Strand 413/44
Jacket (Insulation) Diameter 0.140 (3.56mm)
Insulation Diameter 3.556 mm
Wire/Cable Diameter 3.56 mm
Dimensions
Length 10.00' 3.05m
Jacket (Insulation) Thickness 0.047 1.19mm
Insulation Thickness 1.1938mm
Compliance
RoHS Status RoHS Compliant
Ratings UL Style 3577
