9921 006100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Single Conductor Cables (Hook-Up Wire)
Description

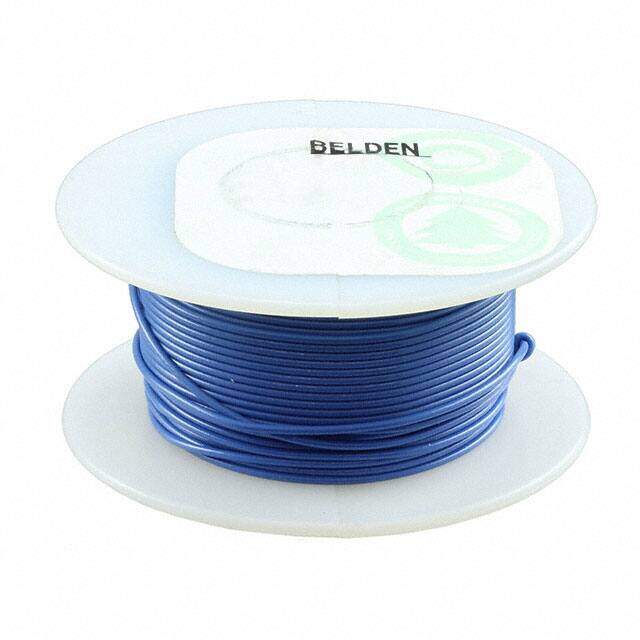

BELDEN 9921 006100 HOOK UP WIRE, 100FT, 22AWG, COPPER, BLUE
PDF
/
Buying Options
Total Price: USD $78.14
Unit Price: USD $78.135603
≥1 USD $78.135603
≥10 USD $73.712835
≥100 USD $69.540406
≥500 USD $65.604156
≥1000 USD $61.890714
Inventory: 965
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Technical
Operating Temperature -20°C~105°C
Packaging Spool
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Wire Gauge 22 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Hook-Up
Jacket Color Blue
Conductor Strand 7/30
Jacket (Insulation) Diameter 0.062 (1.57mm)
Dimensions
Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.016 0.41mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 1007/1569
