83007 008100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Single Conductor Cables (Hook-Up Wire)
Description

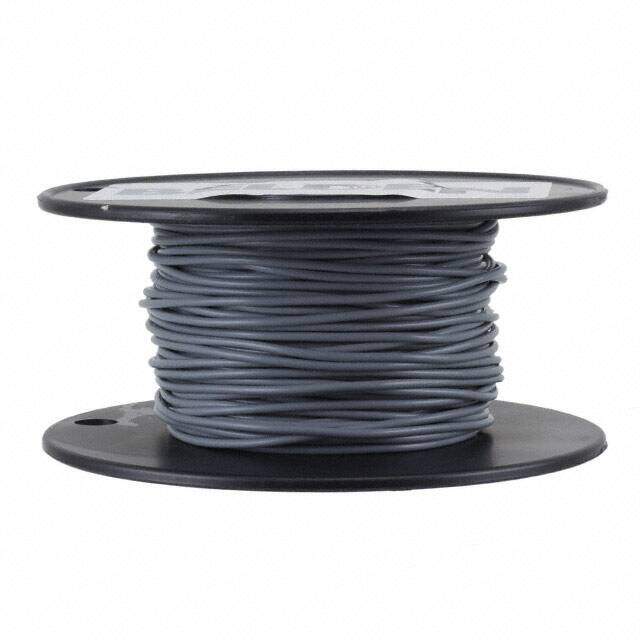

Hook-up Wire 20AWG 1C TFE 100' SPOOL GRAY
PDF
/
Buying Options
Total Price: USD $180.7
Unit Price: USD $180.6992
≥1 USD $180.6992
≥10 USD $167.17067
≥100 USD $161.37264
≥500 USD $157.507425
≥1000 USD $153.64184
≥3000 USD $143.979264
Inventory: 97
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style 1213
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.009 0.23mm
Length 100.0' 30.5m
Technical
Wire and Cable Name FLEXIBLE CORD AND FIXTURE WIRE
Rated Current 6.5A
Jacket (Insulation) Diameter 0.058 (1.47mm)
Conductor Strand 19/32
Jacket Color Gray
Cable Type Hook-Up
Connector Support Type WIRE AND CABLE
Voltage 600V
Wire Gauge 20 AWG
Approval Agency UL
Number of Conductors 1
Construction STRANDED
Shielding NO
Resistance 0.03Ohm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature High Temperature
Series MIL-W-16878/4
Published 2011
Packaging Spool
Operating Temperature -70°C~200°C
Physical
Jacket (Insulation) Material Tetrafluoroethylene (TFE)
Conductor Material Copper, Silver Coated
Insulation Material TFE
Supply Chain
Factory Lead Time 4 Weeks
