83005 004100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Single Conductor Cables (Hook-Up Wire)
Description

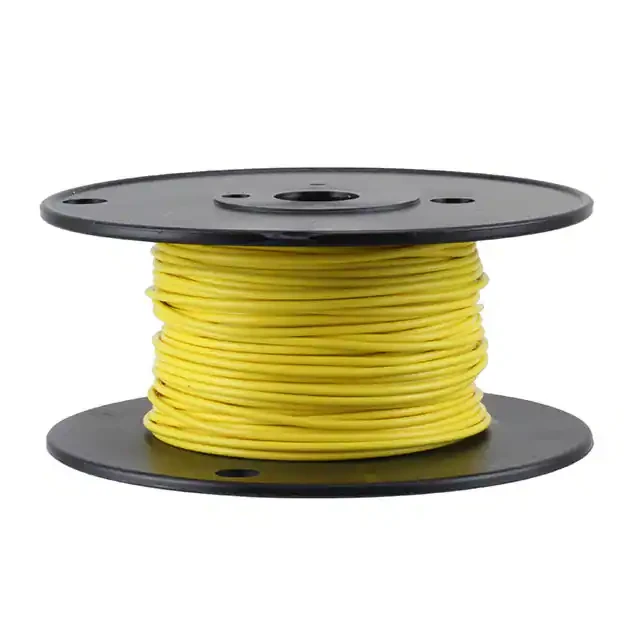

Hook-up Wire 22AWG 1C TFE 100' SPOOL YELLOW
PDF
/
Buying Options
Total Price: USD $131.19
Unit Price: USD $131.1904
≥1 USD $131.1904
≥10 USD $121.36373
≥100 USD $117.15616
≥500 USD $114.349717
≥1000 USD $111.54352
≥3000 USD $104.527808
Inventory: 74
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style 1213
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.010 0.25mm
Length 100.0' 30.5m
Technical
Jacket (Insulation) Diameter 0.050 (1.27mm)
Conductor Strand 7/30
Jacket Color Yellow
Cable Type Hook-Up
Voltage 600V
Wire Gauge 22 AWG
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature High Temperature
Series MIL-W-16878/4
Published 2001
Packaging Spool
Operating Temperature -70°C~200°C
Physical
Jacket (Insulation) Material Tetrafluoroethylene (TFE)
Conductor Material Copper, Silver Coated
Supply Chain
Factory Lead Time 3 Weeks
