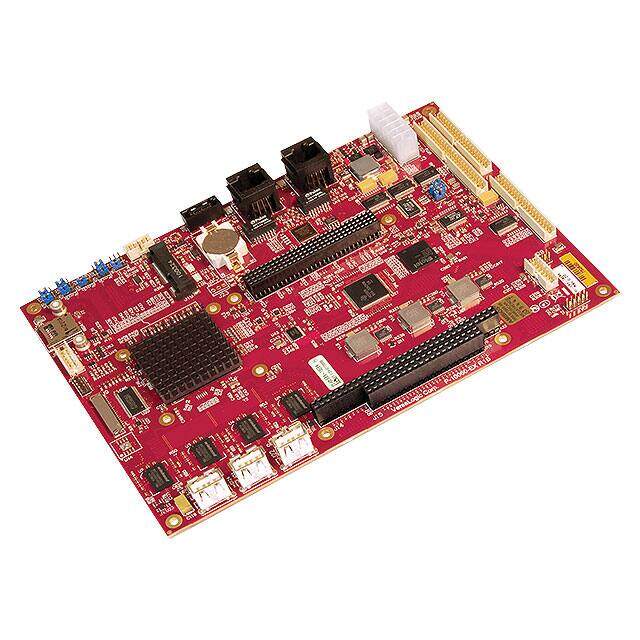

VL-EBX-18EBK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Embedded Computers / Single Board Computers (SBCs)
Description
VORTEX86DX2 CPU 800MHZ ET 1GB
PDF
/
Buying Options
Total Price: USD $426.8
Unit Price: USD $426.8
≥1 USD $426.8
Inventory: 34
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Analog Input:Output 8:0
RS-232 (422, 485) 4
Digital I/O Lines 32
Expansion Site/Bus PC/104-Plus
Video Outputs VGA, LVDS
Storage Interface SATA, Mini PCIe/mSATA, microSD
RAM Capacity/Installed 1GB/0GB
Number of Analog Inputs 8
Number of Cores 1
Form Factor EBX
USB USB 2.0 (5)
Ethernet 10/100Mbps (2)
Watchdog Timer Yes
Core Processor Vortex86DX2
Speed 800MHz
Frequency 800MHz
Max Power Dissipation 7.5W
Power (Watts) 6.5W
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 5.75 x 8 146mmx203mm
Series Anaconda
Published 2016
Operating Temperature -40°C~85°C
Supply Chain
Factory Lead Time 16 Weeks
