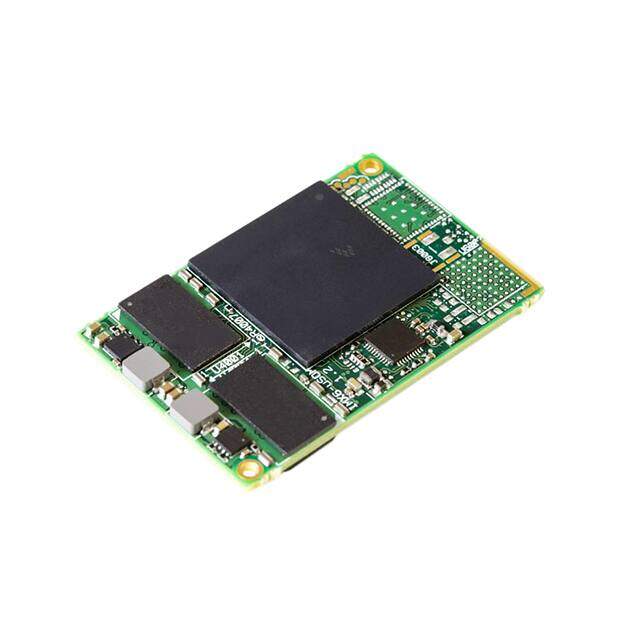

SRMX6DLW00D512E000V15E0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Embedded Computers / Single Board Computers (SBCs)
Description
SOM DUAL EXTEND TEMP 1GB 1GHZ
PDF
/
Inventory: 4808
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Technical
Operating Temperature -20°C~70°C
Series MicroSoM i2
Size / Dimension 1.85 x 1.18 47mmx30mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Speed 1.2GHz
Core Processor ARM? Cortex?-A9, i.MX6DualLite
Ethernet 10/100/1000Mbps (1)
USB USB 2.0 (1), USB OTG (1)
Number of Cores 2
RAM Capacity/Installed 1GB/1GB
Storage Interface eMMC, NOR-Flash, PCIeSSD, SD/mSD
Video Outputs DSI, HDMI, LVDS
Expansion Site/Bus PCIe
Digital I/O Lines 75
Compliance
RoHS Status ROHS3 Compliant
