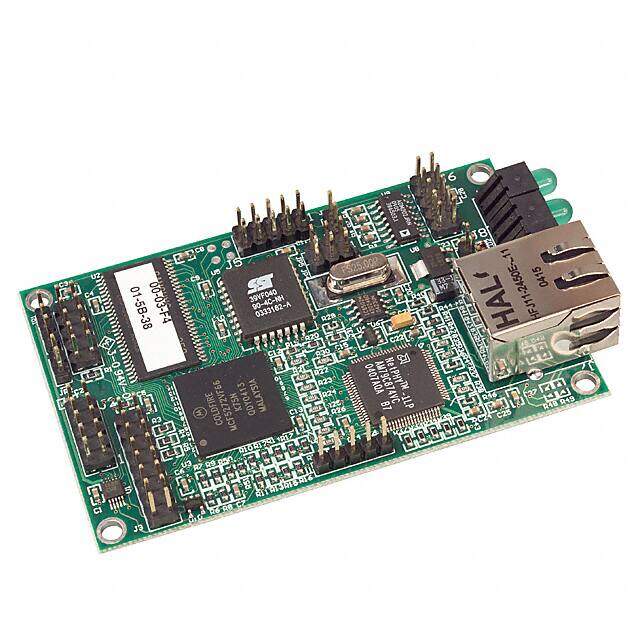

SB72-301CR
RoHS
/
Package Module
Category Embedded Computers / Single Board Computers (SBCs)
Description
Ethernet Modules 32Bit 62MHz Single Board Module RJ45
PDF
/
Inventory: 2801
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Package / Case Module
Technical
Operating Temperature 0°C~70°C
Published 2002
Series SB
Size / Dimension 3.25 x 2 82.55mmx50.8mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Frequency 62.5MHz
Operating Supply Voltage 5V
Interface Ethernet, RS-232
Operating Supply Current 480mA
Speed 62.5MHz
Core Processor ColdFire 5272
Data Rate 115.2 kbps
Power Consumption 2.4W
Ethernet 10/100Mbps (1)
Number of Cores 1
RAM Capacity/Installed 8MB/8MB
RS-232 (422, 485) 2
Compliance
RoHS Status RoHS Compliant
