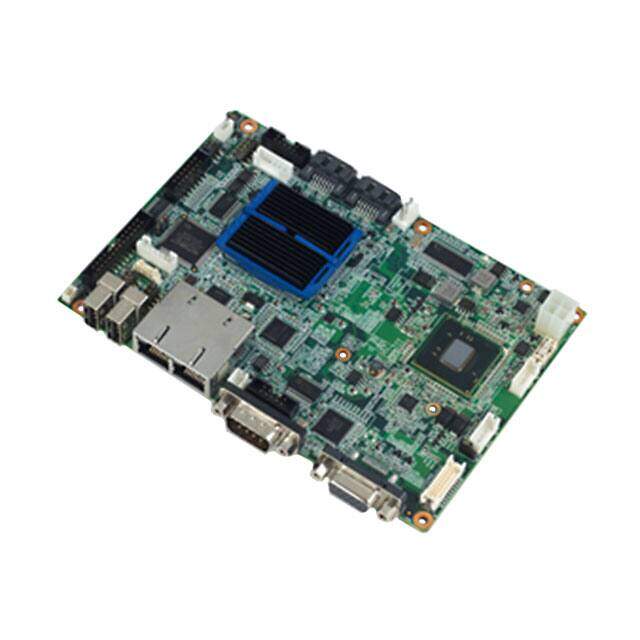

PCM-9363D-S8A1E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Embedded Computers / Single Board Computers (SBCs)
Description
Motherboards Intel Atom Dual Core D525 DDR3 SO-SIMM 1366x768Pixel 10Mbps/100Mbps/1000Mbps
PDF
/
Inventory: 9377
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Technical
Operating Temperature 0°C~60°C
Published 2011
Size / Dimension 5.7 x 4 146mmx102mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 60°C
Min Operating Temperature 0°C
Power (Watts) 10.32W
Max Power Dissipation 10.32W
Frequency 1.8GHz
Speed 1.8GHz
Core Processor Atom D525
Watchdog Timer Yes
Ethernet 10/100/1000Mbps
USB USB 2.0 (6)
Form Factor 3.5 CPU Boards
Number of Cores 2
RAM Capacity/Installed 4GB/0GB
Storage Interface SATA2, CompactFlash
Video Outputs HDMI, LVDS, VGA
Expansion Site/Bus Mini-PCIe
Digital I/O Lines 8
Cooling Type Fan
RS-232 (422, 485) 3
Compliance
RoHS Status RoHS Compliant
