MIO-2261N-S6A1E
RoHS
/
Package /
Category Embedded Computers / Single Board Computers (SBCs)
Description

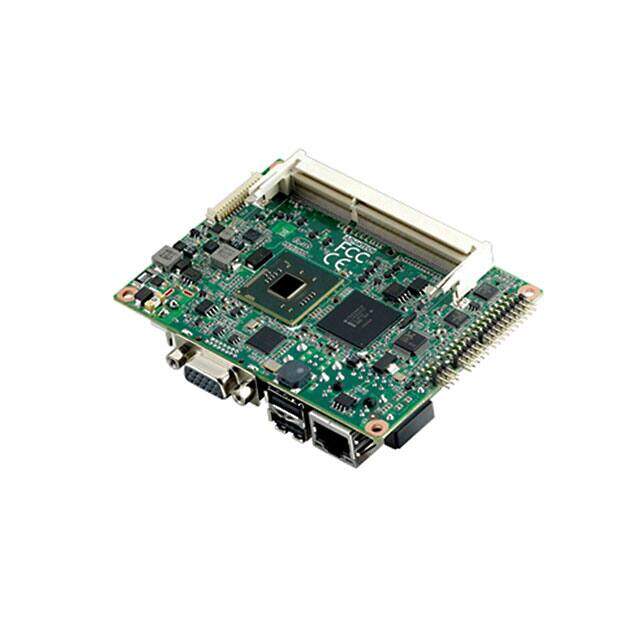

CIRCUIT BOARD, MIO-2261 A101-1 AtomN2600,MIO-Ultra,18/24bitLVDS
PDF
/
Inventory: 7978
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Technical
Operating Temperature 0°C~60°C
Published 2014
Size / Dimension 3.9 x 2.8 100mmx72mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 60°C
Min Operating Temperature 0°C
Power (Watts) 4.2W
Max Power Dissipation 4.2W
Frequency 1.6GHz
Speed 1.6GHz
Core Processor Atom N2600
Watchdog Timer Yes
Ethernet 10/100/1000Mbps
USB USB 2.0 (4)
Form Factor MIO-Ultra Pico-ITX
Number of Cores 2
RAM Capacity/Installed 4GB/0GB
Storage Interface SATA, mSATA
Video Outputs LVDS, VGA
Expansion Site/Bus Mini-PCIe, MIOe
Digital I/O Lines 8
Cooling Type Heat Sink
RS-232 (422, 485) 2
Compliance
RoHS Status RoHS Compliant
