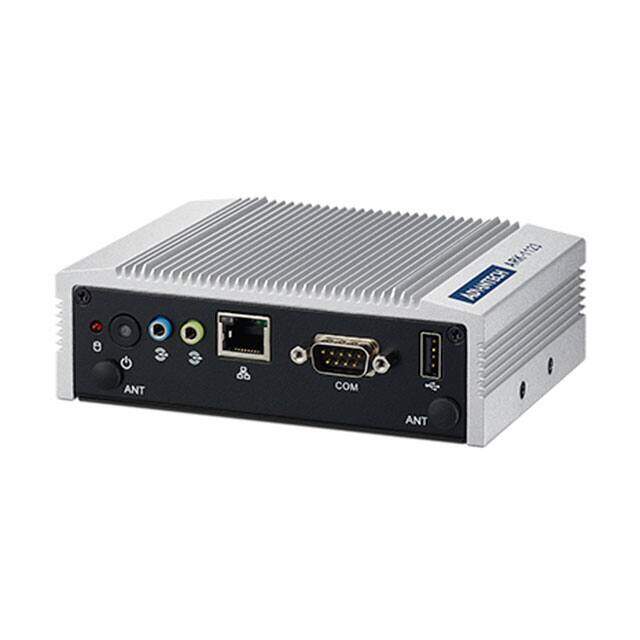

ARK-1123H-U0A1E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Embedded Computers / Single Board Computers (SBCs)
Description
FANLESS PC CELERON J1900 2.0GHZ
PDF
/
Inventory: 3181
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
RS-232 (422, 485) 1
Cooling Type Heat Sink
Expansion Site/Bus Mini-PCIe
Video Outputs HDMI
Storage Interface SATA HDD, mSATA
RAM Capacity/Installed 8GB/0GB
Number of Cores 4
USB USB 2.0 (2), USB 3.0 (1)
Ethernet 10/100/1000Mbps
Watchdog Timer Yes
Core Processor Celeron J1900
Speed 2.0GHz
Operating Supply Voltage 12V
Power (Watts) 14.04W
Min Operating Temperature -20°C
Max Operating Temperature 60°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 5.27 x 3.71 133.8mmx94.2mm
Published 2010
Operating Temperature -20°C~60°C
Supply Chain
Factory Lead Time 5 Weeks
