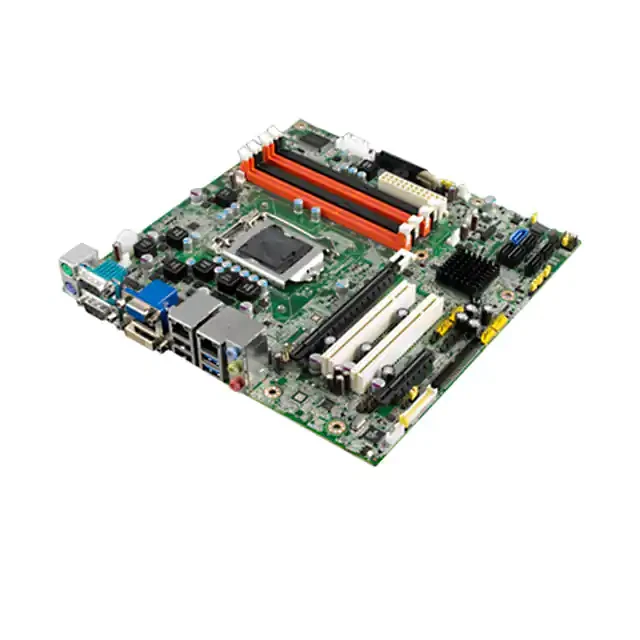

AIMB-581WG2-00A1E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Embedded Computers / Single Board Computers (SBCs)
Description
CORE I7/I5/I3/PROCESSOR LGA1155MICROATX WITH VGA/DVI/LVDS, 4 COM, ANDDUAL LAN
PDF
/
Inventory: 4837
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Technical
Operating Temperature 0°C~60°C
Size / Dimension 9.6 x 9.6 244mmx244mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 60°C
Min Operating Temperature 0°C
Frequency 3.4GHz
Speed 2.5GHz ~ 3.4GHz
Core Processor Intel Core i7/i5/i3/Celeron/Pentium
Watchdog Timer Yes
Ethernet 10/100/1000Mbps
USB USB 2.0 (10), USB 3.0 (2)
Form Factor Micro-ATX (without Processor)
Number of Cores 2/4
RAM Capacity/Installed 32GB/0GB
Storage Interface SATA 2.0 (4), SATA 3.0 (2)
Video Outputs CRT, DVI, LVDS
Expansion Site/Bus PCI, PCIe
Digital I/O Lines 8
Cooling Type Heat Sink
RS-232 (422, 485) 6
Compliance
RoHS Status RoHS Compliant
