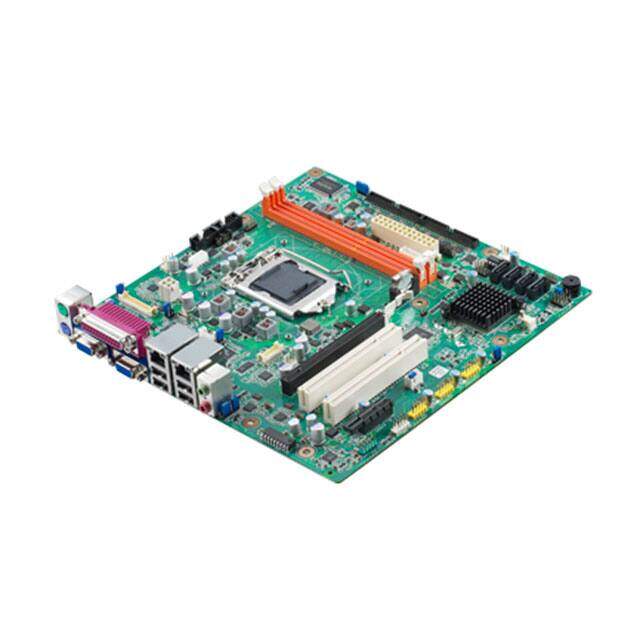

AIMB-501G2-KSA1E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Embedded Computers / Single Board Computers (SBCs)
Description
MOTHERBOARD I CORE H61 MICROATX
PDF
/
Inventory: 6298
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
RS-232 (422, 485) 10
Cooling Type Heat Sink
Digital I/O Lines 8
Expansion Site/Bus PCI, PCIe
Video Outputs CRT, DVI, LVDS, VGA
Storage Interface SATA 2.0 (4)
RAM Capacity/Installed 16GB/0GB
Number of Cores 2/4
Form Factor Micro-ATX (without Processor)
USB USB 2.0 (10)
Ethernet 10/100/1000Mbps
Watchdog Timer Yes
Core Processor Intel Core i7/i5/i3/Celeron/Pentium
Speed 2.5GHz ~ 3.4GHz
Frequency 3.4GHz
Min Operating Temperature 0°C
Max Operating Temperature 60°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 9.6 x 9.6 244mmx244mm
Operating Temperature 0°C~60°C
Supply Chain
Factory Lead Time 13 Weeks
