935131424522
RoHS
/
Package 0402 (1005 Metric)
Category Capacitors / Silicon Capacitors
Description

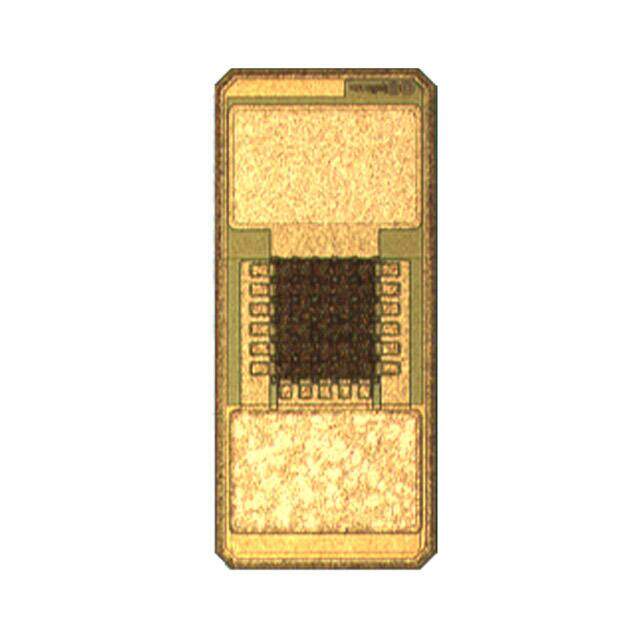

CAP SILICON 0.022UF 15% 11V 0402
PDF
/
Buying Options
Total Price: USD $1.52
Unit Price: USD $1.5224
≥1 USD $1.5224
≥10 USD $1.48896
≥100 USD $1.460448
Inventory: 275
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 711.2μm
Length 1.1938mm
Height 0.016 0.41mm
Technical
ESL (Equivalent Series Inductance) 100pH
Voltage - Breakdown 11V
ESR (Equivalent Series Resistance) 400mOhms
Case Code (Imperial) 0402
Case Code (Metric) 1005
Capacitance 0.022μF
Applications High Stability
Min Operating Temperature -55°C
Max Operating Temperature 150°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Feature High Reliability
Tolerance ±15%
Size / Dimension 0.047Lx0.028W 1.20mmx0.70mm
Series HSSC
Published 2011
Packaging Cut Tape (CT)
Operating Temperature -55°C~150°C
Physical
Package / Case 0402 (1005 Metric)
Alternative Model
