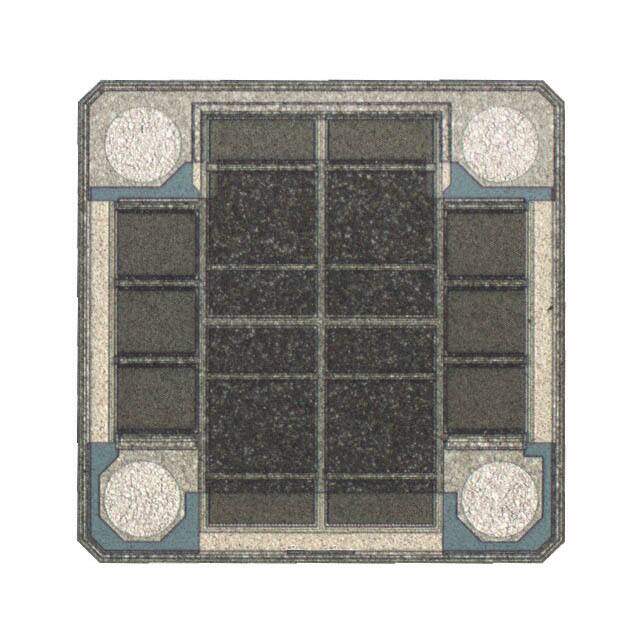

93512542F610
RoHS
/
Package 0404 (1010 Metric)
Category Capacitors / Silicon Capacitors
Description
CAP SILICON 0.1UF 15% 11V 0404
PDF
/
Inventory: 1839
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 990.6μm
Length 990.6μm
Height 0.010 0.25mm
Technical
ESL (Equivalent Series Inductance) 100pH
Voltage - Breakdown 11V
ESR (Equivalent Series Resistance) 100mOhms
Case Code (Imperial) 0404
Case Code (Metric) 1010
Capacitance 0.1μF
Applications High Temperature
Min Operating Temperature -55°C
Max Operating Temperature 250°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Feature High Reliability, Low Profile
Tolerance ±15%
Size / Dimension 0.039Lx0.039W 1.00mmx1.00mm
Series EXSC
Published 2012
Packaging Cut Tape (CT)
Operating Temperature -55°C~250°C
Physical
Package / Case 0404 (1010 Metric)
