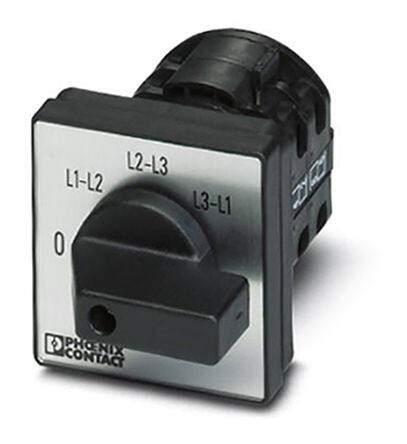

3069700 image
Favorite
3069700 image
Favorite
RoHS
/
Package /
Category Switches / Selector Switches
Description RS20-US-S0004-0204-014H-001
PDF
/
Inventory: 1353
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Technical

Depth Behind Flange 43.00mm
Illumination Non-Illuminated
Panel Cutout Dimensions Circular - 15.00mm Dia
Switch Function Off-On-On-On
Circuit SP3T
Approval Agency cUL, cULus, EAC, UL
Voltage - Rated AC 300V
Termination Style Screw Terminal
Current Rating (Amps) 20A AC
Number of Positions 4
Type Voltmeter Changeover
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Marking: 0-L1-L2-L2-L3-L3-L1
Published 2015
Operating Temperature -35°C~55°C

Physical

Mounting Type Panel Mount

Supply Chain

Factory Lead Time 6 Weeks
